Description

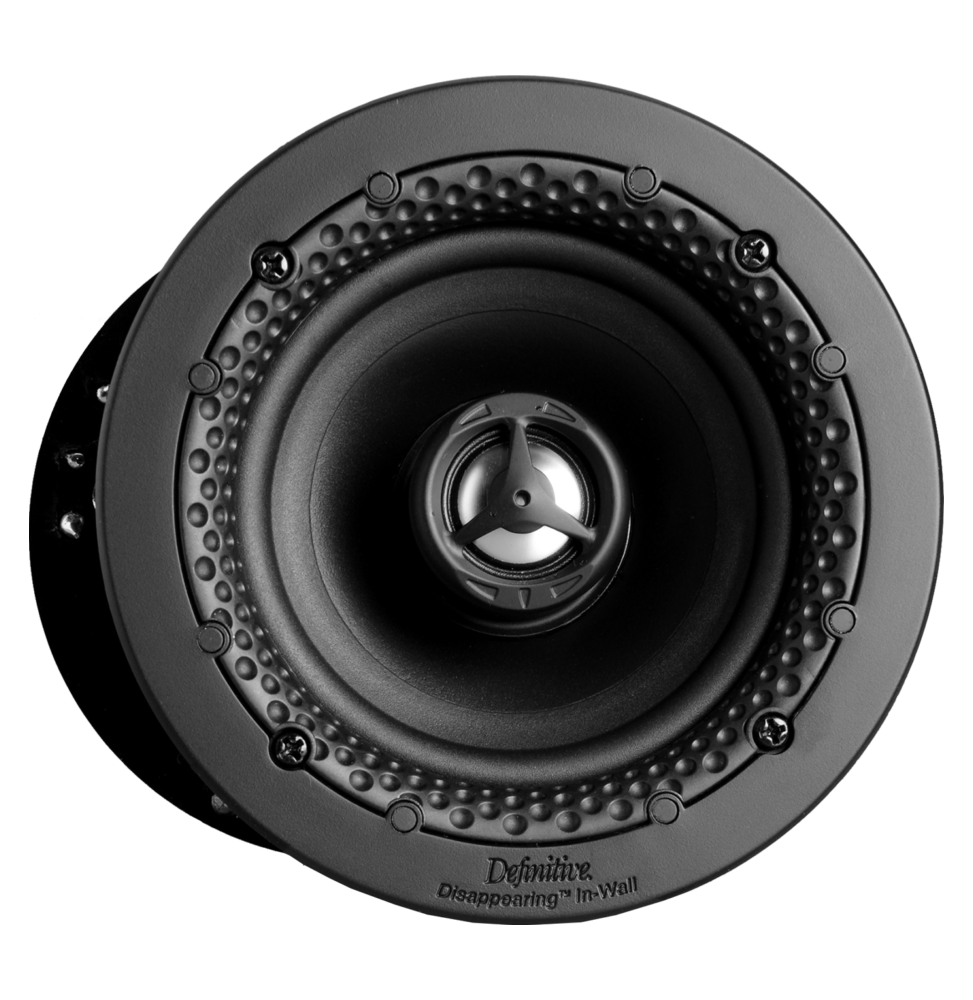

Disappearing™ Series Round 4.5” In-Wall / In-Ceiling Loudspeaker
Flangeless, flush mount design and micro-perf grilles allow 5.38” of visibility to match mini recessed lighting fixtures
Deeper sound quality with precision BDSS™ drivers and a pivoting pure aluminum dome tweeter
Rigid PolyStone™ baskets eliminate unwanted vibrations to prevent ringing and minimize distortion
Axially aligned design provides broader sound dispersion and more natural balance
IN-CEILING SOUND THAT COVERS MORE GROUND
Powerful performance is practically invisible with the Definitive Technology Disappearing™ Series. Combining a 5.3” visible diameter and 4.5” mid/woofer that effortlessly outperforms larger traditional speakers, the DI 4.5R easily installs into your ceiling to envelop any space in dynamic, high definition audio. With this over-achieving, flush mount loudspeaker, you’ll hear fantastic sound in every corner of the room, but you won’t see a thing.
Key Features
Designed for Invisibility
With a minimal visible surface area, hidden flange architecture and micro-perf grille, the DI 4.5R disappears into any environment, without the need for custom sheetrock or spackle work.
Balanced Double Surround System
Proprietary BDSS™ technology delivers the wide dynamic range and deep bass output of much larger drivers in a small-sized, high-efficiency mid/woofer.
Adjustable Crossover
A sophisticated adjustable crossover network with custom, high-precision components produces superior sonic purity for crisp, clean sound.
Balanced Dispersion
BDSS™ technology, aim-ready tweeters and a specially-contoured AeroRing™ around the driver distributes natural, well-balanced sound everywhere in the room.
Overall
- Total Pieces
- 1
Accessories
- Included Accessories
- (1) Wall Mounting Template
- (1) Paintable Magnetic Grille
Warranty
- Cabinet Warranty
- 5 years
- Drivers Warranty
- 5 years
Shipping Cartons
- Carton 1
- 6.13" (15.57 cm) h x 8.44" (21.44 cm) w x 7.56" (19.2 cm) d - 4 lbs (1.81 kg)
In-Ceiling Speaker
- Qty Included
- 1
- Availability
- US
- Driver Complement
- (1) 0.75" (1.91 cm) d (Round) Pivoting Dome Tweeter - Tweeter
- (1) 4.5" (11.43 cm) d (Round) BDSS Bass/Mid - Mid/Woofer
- Depth
- 3.38" (8.59 cm)
- Weight
- 2.6 lbs (1.18 kg)
- Grille Dimensions
- 5.38" (13.67 cm) diameter
In-Ceiling Mount
- Shape
- Round
- Dimensions
- 4.5" (11.43 cm) diameter
- Clearnace Required for Mounting Dogs (add to each side of cutout)
- 0.88" (2.24 cm)
In-Wall Mount
- Shape
- Round
- Dimensions
- 4.5" (11.43 cm) diameter
- Clearnace Required for Mounting Dogs (add to each side of cutout)
- 0.88" (2.24 cm)
Inputs
- Audio Inputs
- Speaker Inputs
- (1) Pair of Heavy Duty, Spring Loaded - na
Audio Quality
- Total Frequency Response
- 35 Hz → 30 Hz
- Nominal Impedance
- 8 ohms
- Max Sensitivity (1 watt @ 1 meter)
- 89 dB
Crossover
- A/V Receiver Crossover Settings
- Small (100 Hz)
