McIntosh MEN220 Room Correction Preamplifier

Print

men220

New

Room Correction System

  • Works on 1/12 Octaves
  • 2-Way Electronic Crossover for Bi-amping

More details

$ 13,999.00

In-Stock At Supplier

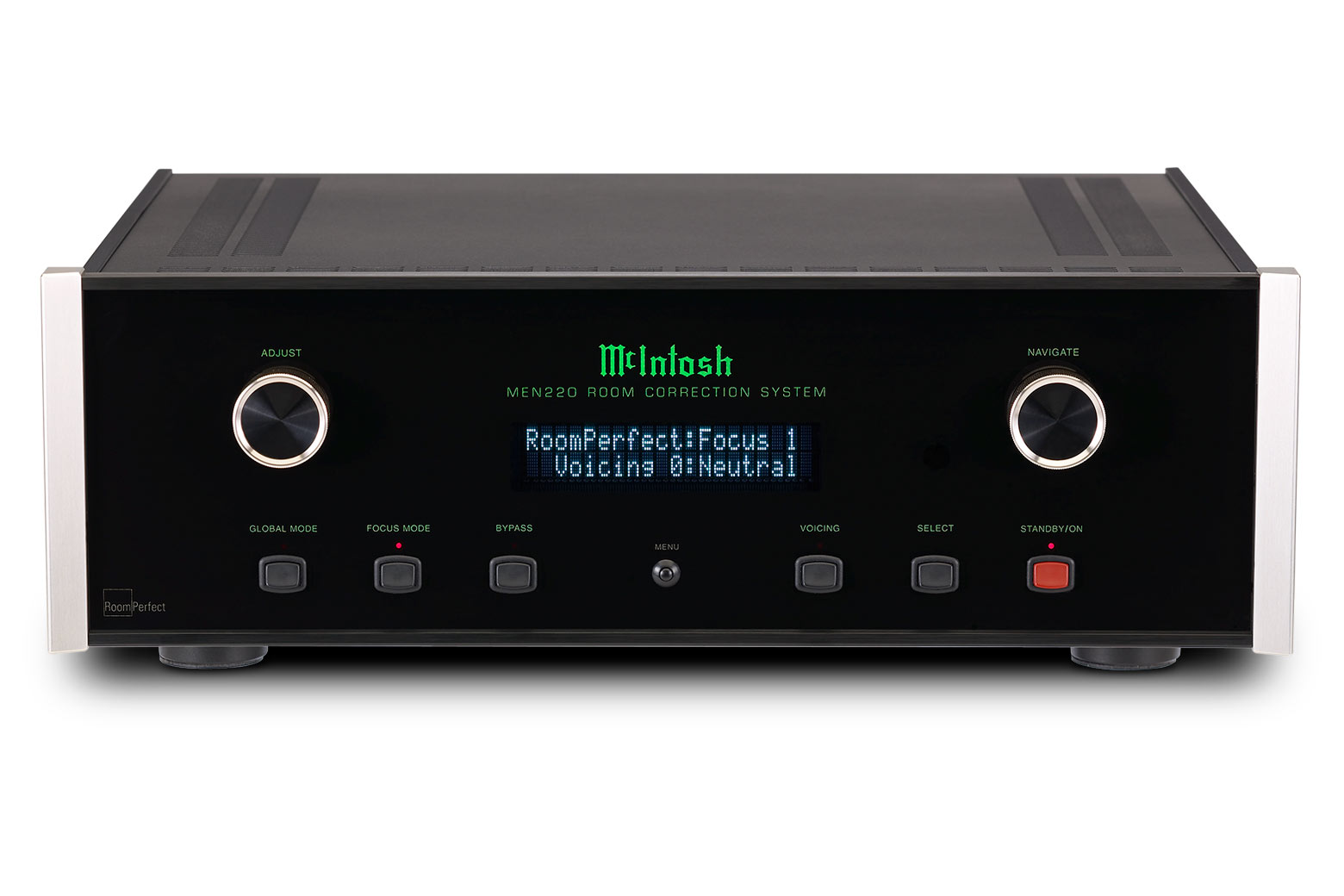

MEN220-Front-Top.ashx

MEN220

Room Correction System

  • Works on 1/12 Octaves
  • 2-Way Electronic Crossover for Bi-amping

The MEN220 delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.

"I have never heard my speakers sound so wonderful!" - Michael (customer review)

Full system control and PC link are provided via RS232 while McIntosh data, power control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included. Contact your local dealer to learn more.

ROOMPERFECT is a registered trademark and the ROOMPERFECT logo is a trademark of Lyngdorf Audio A/S.

Electronic Specifications

Unless noted, the following were taken with RoomPerfect set to Bypass Mode and Voicing Mode set to Neutral.

  • Frequency Response
    +0, -0.5dB from 20Hz to 20,000Hz
  • Total Harmonic Distortion
    0.002% from 20Hz to 20,000Hz
  • Maximum Input Voltage
    4.5V Unbalanced and Balanced (Preamp-Power Amp)
    2.25V Unbalanced and Balanced (Processor Loop)
  • Maximum Output Voltage
    4.5V Unbalanced and Balanced (Preamp-Power Amp)
    2.25V Unbalanced and Balanced (Processor Loop)
  • Signal To Noise Ratio (A-Weighted)
    100dB
  • Input Impedance
    10K ohms Unbalanced and Balanced
  • Voltage Gain
    0dB
  • Output Impedance
    50 ohms
  • Crossover Filter Types, Order and Slope
    Butterworth, 1st order, 6 dB/octave
    Butterworth, 2nd order, 12 dB/octave
    Butterworth, 4th order, 24 dB/octave
    Linkwitz-Riley, 2nd order, 12 dB/octave
    Linkwitz-Riley, 4th order, 24 dB/octave
    Linkwitz-Riley, 8th order, 48 dB/octave

Weights & Dimensions

  • Dimensions (W x H x D)
    17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)
  • Weight
    25.5 lbs (11.6 kg)
  • Shipping Weight
    41.9 lbs (19 kg)
