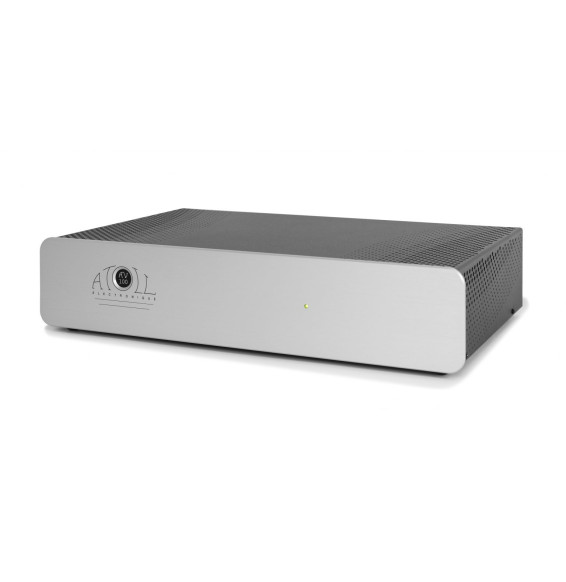

Atoll Electronique AV100 Power Amplifier

Atoll Electronique AV100 Power Amplifier

The Atoll Electronique AV100 Power Amplifier does not derogate from the quality criteria of the French lack. It employs discrete components for its output stage, including Mos-Fet transistors . These electronic chips have always been renowned for their great musicality, in particular their ability to deliver robust and fluid sound. The Atoll AV100 is also equipped with two toroidal transformers of 660 VA (in total) and a current capacity of 30,000 µF.

The Atoll AV100 home theater power amp is a high-performance upgrade solution for anyone looking to enjoy a new home theater experience.

Brand acclaimed by audiophiles for decades, Atoll offers a wide range of electronics for hi-fi and home cinema. Integrated amplifiers, stereo power amps, home cinema power amps, preamps, DACs, DLNA amps, RIAA preamps… no device is missing for those wishing to equip themselves qualitatively.

Features

• Musicality
• Solid footing
• Audiophile components
• Important current capacity

Technical Specifications

Design
Multi-Channel Power Amplifier
Steel Chassis
Mos-Fet Transistors
660 VA Toroidal Transformer

Measurements
Power: 3×100 W under 8 ohms and 3×140 W under 4 ohms
Pulse power: 180 W
Input sensitivity: 450 mV
Power supply: 330 VA
Current capacity: 30,000 µF
Rise time: 1.3 µs
THD: 0.005% (at 1 kHz)
Input impedance: 47 kohms
Frequency response: 5 Hz to 100 kHz

Connections
3x mono RCA analog inputs and 3x outputs
Gold-plated screw terminals

General
Minimum consumption: 12 W
Maximum consumption: 600 W
Dimensions (wxhxd): 440 x 90 x 270 mm
Weight: 10 kg

New Zealand Atoll Official Product. Come with Atoll Manufactures Warranty.
