acpa240
New
The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.
0 Item Items
Availability date:

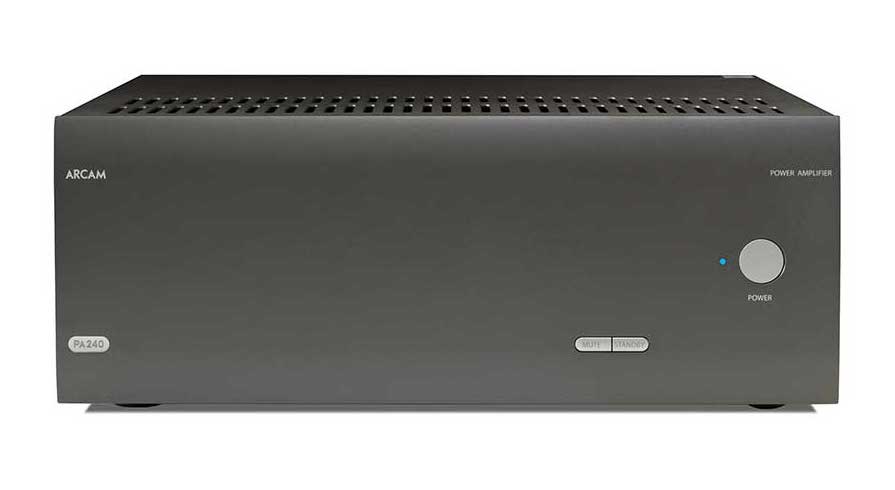

The Arcam PA240 Power Amplifier features the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.
| Continuous power output at 0.2% THD per channel | ||
| 2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz | 380W/225W | |
| 1 channel driven, 8Ω bridged mode, 20-20kHz | 790W | |
| Harmonic distortion, 80% power, 8Ω at 1kHz | 0.001% | |
| Inputs | ||
| RCA Type | XLR Type | |
| Input sensitivity 200W / 8Ω | 1.15V RMS | 2.3V RMS |
| Signal/Noise ratio (A-wtd) 50W / 8Ω | 110dB | |
| Input impedance | 10kΩ | |
| Frequency response | 20 – 20kHz +/-0.05dB | |
| General | ||
| Mains voltage | 110–120V or 220–240V, 50–60Hz | |
| Power consumption (maximum) | 1.5kW | |
| Power consumption (idle, typical) | 90W (Thermal dissipation approx. 340 BTU/hour) | |
| Power consumption (standby) | <0.5W | |
| Dimensions W x D x H (including feet, control knob and speaker terminals) | 433 x 425 x 177mm | |
| Weight (net) | 18kg | |
| Weight (packed) | 19.7kg | |
| EAN | 6925281956768 | |
