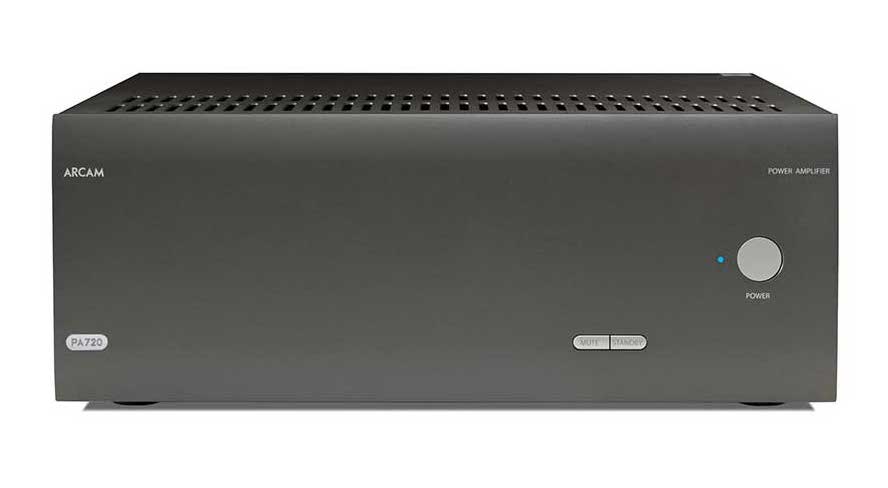

Arcam PA720 Power Amplifier

Print

acpa720

New

The PA720 is a high-performance power amplifier that delivers 7 channels of efficient Class G amplification. With an impressive 140W per channel, the PA720 is designed to offer the greatest flexibility and power without compromising on control.

More details

$ 6,995.00

In-Stock At Supplier

Arcam PA720 Power Amplifier

The Arcam PA720 Power Amplifier features the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA720 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Features

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

  • 7 Channel Power Amplifier
  • 7 x 140W Class G amplification (all channels driven)
  • Class G amplification with 20W of Class A operation
  • Toroidal transformer
  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs

Specifications

Continuous power output at 0.2% THD per channel
Seven channels driven, 4Ω / 8Ω, 20Hz – 20kHz140W / 100W
Five channels driven, 4Ω / 8Ω, 1kHz175W / 110W
Two channels driven, 4Ω / 8Ω, 1kHz225W / 140W
Harmonic distortion, 80% power, 8Ω at 1kHz0.002%
Inputs
RCA TypeXLR Type
Input sensitivity 50W / 8Ω800mV RMS1.6V RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω105dB
Input impedance10kΩ
Frequency response20 – 20kHz +/-0.05dB
General
Mains voltage110–120V or 220–240V, 50–60Hz
Power consumption (maximum)1.5kW
Power consumption (idle, typical)90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby)<0.5W
Dimensions W x D x H (including feet, control knob and speaker terminals)433 x 425 x 177mm
Weight (net)18kg
Weight (packed)19.7kg
EAN6925281956720

Specifications

User Manual

New Zealand Arcam Official Product. Come with Arcam Manufactures Warranty.
