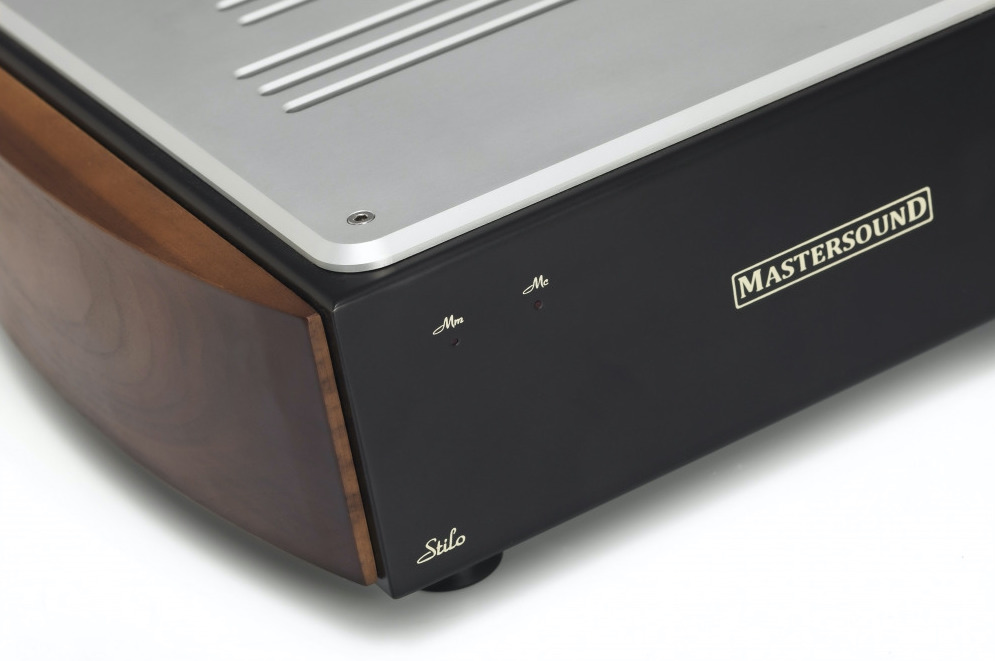

MastersounD Stilo Tube Phono Preamplifier

MastersounD Stilo Tube Phono Preamplifier

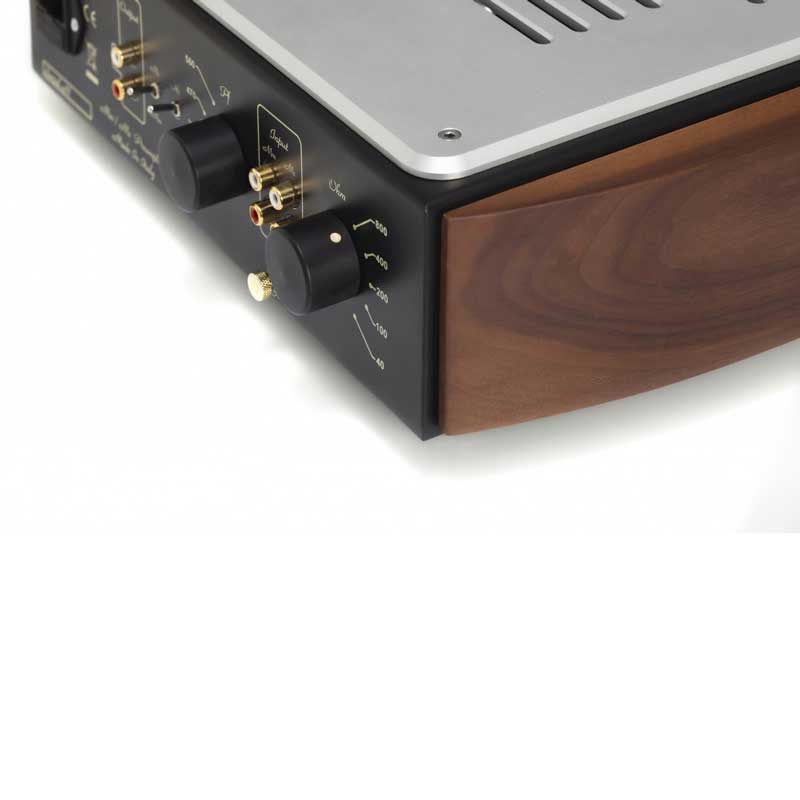

The adaptation for the phono cartridge in the MastersounD Stilo Tube Phono Preamplifier is made by 2 rotary switches, one for the load capacity and the other for the output impedance. Two toggle switches allow selection of phono cartridge type (MM/MC) and gain (Low/Hi).

Output Transformer
One of the most important components in creating a good tube amplifier is the output transformer.

At MastersounD output transformers are wrapped one at a time by hand on a mechanical winding machine, based on the experience, passion and the research of Mr. Cesare Sanavio.

He then transmitted such knowledge to his son Mr. Luciano Sanavio who succeeded in the great challenge of further innovating it in a surprising way. and introducing an innovative and unique construction technique that makes MastersounD output transformer unique in the world.

This precious tradition is the cornerstone of the outstanding quality of our amplifiers, which offer an exceptional performance thanks to their special output transformers. Great dynamics, power and harmonic richness, are the characteristics that a class A tube amplifier can and must have without the classic limitations imposed by traditional output transformers.

Because of this MastersounD, it keeps its secret very carefully.

Tubes Selection
MastersounD tubes selection is the result of decades of research around the world for the best vacuum tubes manufacturers. This continuous research allows us to always select the best tubes in terms of sound quality. Our tubes are readily available and supplied by reliable companies.

Selected tubes undergo thorough quality control tests to ensure maximum reliability and performance.

After installing them on our amplifiers, the two channel waves are carefully aligned.
This step is essential for the perfect stereophonic listening.

Tubes are then tested for almost 48 hours on the amplifiers before packing them and shipping around the world.

Hand Made In Italy
Since 1994 MastersounD has been manufacturing high-end audio components of unsurpassed quality. From the very beginning our goal has been to create a perfect blend of the highest-quality sound.

MastersounD’s experienced staff manufactures one by one with extreme care all the amplifies, in its laboratory in Arcugnano, using the best  components and processing available on the market to reach any and all standards required to be timeless pieces. If there is the opportunity to tap into Italian mastery every day, why not do it?

“Made in Italy” is a label that is taken very seriously by MastersounD.

Sustainability
The sensitivity we use every day in the pursuit of sound harmony, cannot in any way betray and harm our environment. We are aware that being a small part and at the same time at the center of the world requires the maximum possible use of recyclable materials.

Natural wood that is finely processed by Italian master craftsmen gives MastersounD amplifiers their Italian style, making them unique and timeless.

The chassis is made of steel, a material that in addition to requiring less energy and heat for its production is truly sustainable, because it can be re-melted and then reused.

But basically a MastersounD amplifier is destined to go beyond our time and reach future generations.

SPECIFICATIONS

Phono MM/MC tube preamplifier in Class “A”

RIAA curve +/- 0.5 dB
Input impedance: MM 47 Kohms – MC 40/100/200/400/800 ohms
Input capacitance: 0/150/270/470/560 pf
Gain: 60dB MC / 40dB MM (-5dB low)
Bandwidht: 1 Hz / >100 kHz – 0 dB
Tubes: 1 x ECC82 – 2 x ECC83
Inputs: 1 phono MM RCA – 1 Phono MC RCA
Outputs: 1 RCA
Board with Gold tracks
Dimensions: 34,5 x 30 x 11 cm
Weight: 6 Kg.

New Zealand MastersounD Official Product. Come with MastersounD Manufactures Warranty.
