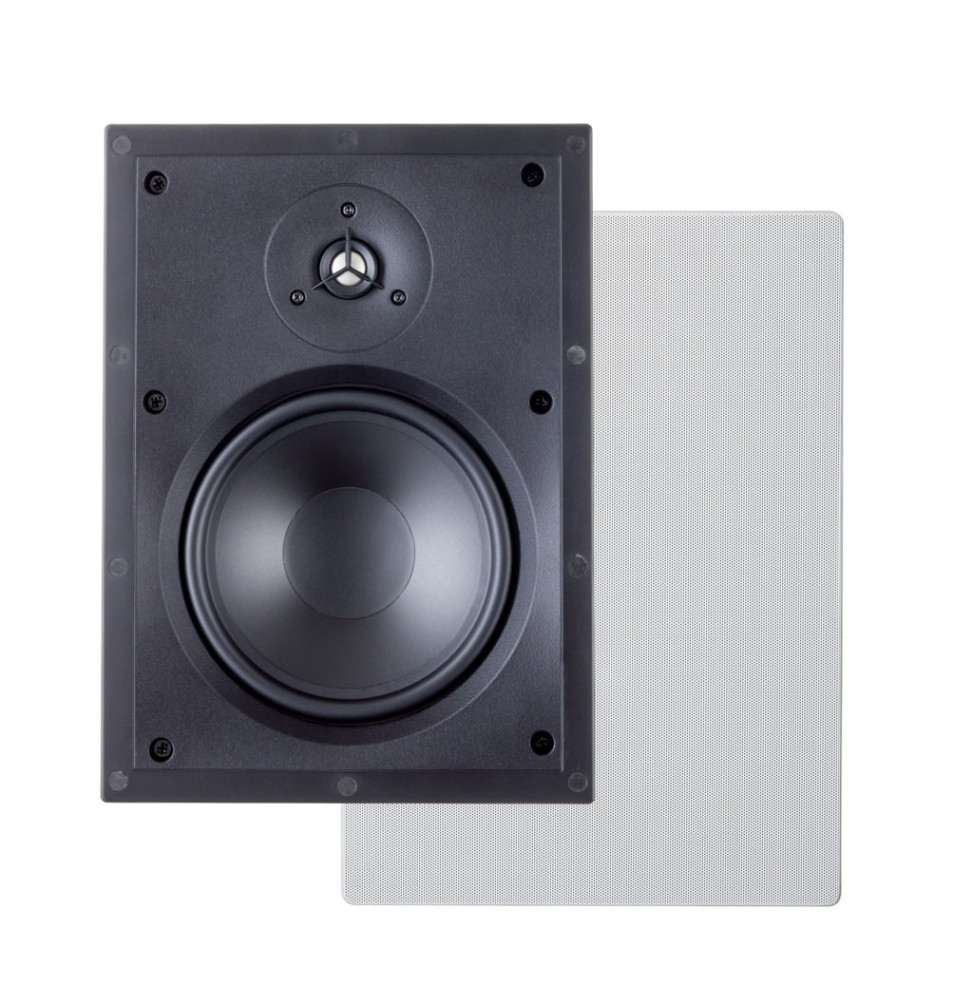

Paradigm CI Home H65-IW In-Wall Speaker

Print

h65iw

New

2-driver, 2-way in-wall, ABS chassis & mounting clamps

More details

$ 349.00


Quick Specs

  • In-wall applications.
  • 3/4" PTD™ dome tweeter.
  • 6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
  • Bezel-Free Micro-Perf Grille.

Your “Go-To” Custom Install Speaker.
The CI Home™ series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

High-Quality Components Make An Audible Difference

  • Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
  • Pocketed screw holes help to hold the drill steady, making installation a snap.
  • Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
  • Rigid ABS clamps cut down on installation time and simplifying installation.
  • Superior Mineral-Filled Polypropylene Bass/Midrange Cones with oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear.
  • NEW Bezel-Free Micro-Perf Grilles.
  • Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
  • No masking required—this makes the grilles faster and easier to paint, if painting is desired.

A Behind-the-Ceiling Look at Our ABS Clamps

Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. We show the starting point, we show the screwdriver working to turn the clamp, and finally, we show the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!

A Solid Installation

Our High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer's job easier and faster!

Innovative Technology
At Every Level


Tweeter Technology

Pure-Titanium Tweeter Dome (PTD™)
X-PAL™ Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Reduced Edge Diffraction (RED™) Technology (Patent Pending) with Added Heat Dissipation

Bass/Midrange Technology

Mineral-Filled Polypropylene Cone
Patented Active Ridge Technology (ART™)
X-PAL™ Brushed Pure-Aluminum Cone Driver
Die-Cast Aluminum Chassis
Oversized, High-Power-Handling Voice Coil

Features/Functions

Dual-Directional Soundfield™ Model
30°-Angled Guided Soundfield™ Model
Bezel-Free Micro-Perf Grille
Rigid ABS Clamps
Die-Cast Aluminum Clamps
Translucent Polycarbonate Cover protects against dust and insulation
Designed and Manufactured in our Canadian Facility  crafted-in-canada.pngcrafted-in-canada.png

CI Home H65-IW Specifications


Design

2-driver, 2-way in-wall, ABS chassis & mounting clamps

Crossover

2nd-order electro-acoustic at 2.5 kHz

Frequency Response   On-Axis

±2 dB from 70 Hz - 20 kHz

Frequency Response   30° Off-Axis

±2 dB from 70 Hz - 18 kHz

High Frequency Driver

3/4" (1.9cm) PTD™ dome

Mid/Bass Frequency Driver

6.5" (16.5cm) mineral-filled polypropylene cone

Low Frequency Extension

55 Hz

Sensitivity   Room / Anechoic

89 dB / 85 dB

Impedance

Compatible with 8 ohms

Suitable Amplifier Power Range

15-90 W

Maximum Input Power

60 W

Finishes

White, paintable grille

Weight

3.5 lbs. (1.6 kg)

Overall Dimensions

11.125" (28.3cm) Height
8.125" (20.6cm) Width
3.375" (8.6cm) Depth

Cut-Out Dimensions

10.125" (25.7cm) Height
7.0625" (17.9cm) Width

Minimum Mounting Depth
Depth required is the distance
between 1/2" drywall, or similar material.

2.75" (7.0cm)

 Specifications are subject to change without notice.
*Sold in Single
