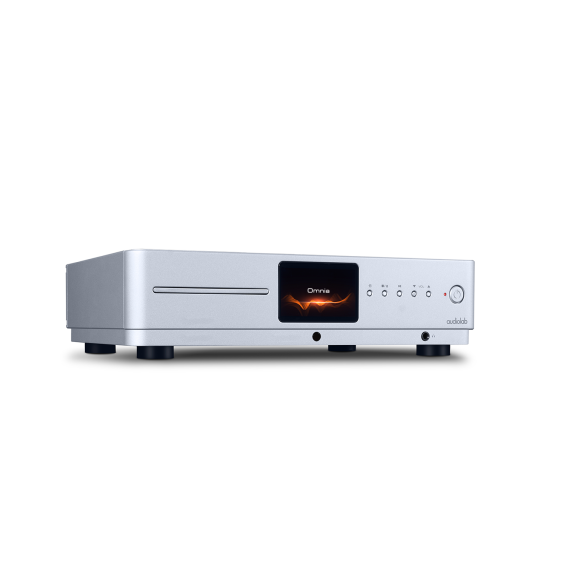

General Description | Integrated Streaming Amplifier | |
Design Philosophy and Core Technology | 2x50W (8ohm) / 2x75W (4ohm) Class AB | |
| ES9038Q2M 32-bit DAC | |
| – 4.3″ (800x480mm) large size full view IPS LCD | |
| Built in certified hardware MQA Full decoder (PC USB, Coax/Optical) | |
| CD playback compatible with CD, CD-R, CD-RW discs | |
| USB memory device support (MP3/WMA/AAC/WAV) | |
| DTS Play-Fi technology (IEEE 802.11 a/b/g/n/ac) | |
| Streaming service support includes Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQmusic and more | |
| Multi-room / multi speaker group support | |
| Bluetooth 5.0 (aptX/aptX LL) streaming | |
| Low Noise Moving Magnet Phono stage | |
| Dedicated Current-Feedback Headphone AMP | |
| Integrated / PRE-POWER / PRE only Modes | |
| Android / iOS / Kindle Fire / Windows PC Control Support | |
| USB firmware upgrade input | |
Inputs | 3 x Analogue, 1 x Phono (MM) , 1 x Power Amplifier, 2 x SPDIF (Coax), | |
| 2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B), | |
| 1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger | |
Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger | |
Sampling Frequency | Optical / Coaxial:44.1kHz —192kHz | |
| Optical / Coaxial: 44.1kHz —192kHz PC USB: 44.1kHz – 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 | |
Preamplifier Section | | |
Gain | +8dB (Line) | |
| +47dB (Phono MM) | |
Input Sensitivity | 720mV (Line, Volume = 0dB) | |
| 3.1mV (Phone MM, Volume=0dB) | |
Input Impedance | 10K (Line) | |
| 47K // 100pF (Phono MM) | |
Total Harmonic Distortion (THD) | < 0.0004% (1KHz @ 2V, Volume = 0dB) | |
Frequency Response | 20Hz-20kHz (+/-0.1dB) | |
Output Voltage | 2.3V max. (Volume = 0dB) | |
Output Impedance | 100 ohm | |
Signal-to-Noise Ratio | >110dB (Line,A-weighted) | |
| 76dB (Phono MM,A-weighted) | |
DAC | | |
D to A Converte | ES9038Q2M | |
Total Harmonic Distortion (THD) | < 0.0006% (1KHz @ 0dBFS) | |
Output level (0dBFS, 1KHz) | 2.1Vrms | |
Max. Sampling Frequency | Optical, Coaxial: 192KHz | |
| Ethernet,Wi-Fi: 192KHz | |
| USB A:48kHz | |
| PC USB: PCM768kHz, DSD512 | |
Signal-to-noise Ratio (S/N) | 114dB (A-weighted) | |
Power Amplifier Section | | |
Gain | +29dB | |
Rated Power Output | 2 x 50W (8 ohm, THD < 1%) | |
| 2 x 75W (4 ohm, THD < 1%) | |
Frequency Response | 20Hz-20kHz (+/-0.3dB) | |
Total Harmonic Distortion (THD) | < 0.003% (1kHz @ 40W / 8ohm) | |
Input Sensitivity | 720mV | |
Signal-to-Noise Ratio (S/N) | 110dB (A – weighted) | |
Max. Output Current | 9A | |
Headphone Amplifier | | |
Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW ) | |
Output Impedance | 10ohm | |
Load impedance | 20-600 ohm | |
General | | |
Standby Power Consumption | < 0.5W | |
Net Weight | 9.1kg | |
Gross Weight | 11kg | |
Dimensions (mm) (W x H x D) | 440 x156 x 327 | |
Carton Size (mm) (W x H x D) | 540 x 412 x 210 | |
Finish | Black / Silver | |
Power Requirements (depending on region) | 220-240V ~ 50/ 60Hz | |
| 100-120V ~ 50/ 60Hz | |
Standard Accessories | Power Cord, Remote Control,User Manual, Antennas, etc. |
