McIntosh MAC7200 Stereo Receiver

Print

mac7200

New

2-Channel Receiver

  • 200 Watts x 2 channel
  • AM/FM Tuner
  • Comes with DA1 Digital Audio Module installed
  • Optional dealer installed upgrade to DA2 Digital Audio Module available

More details

$ 19,999.00

In-Stock At Supplier

MAC7200-Front-Top-background.ashx

MAC7200

2-Channel Receiver

  • 200 Watts x 2 channel
  • AM/FM Tuner
  • Comes with DA1 Digital Audio Module installed
  • Optional dealer installed upgrade to DA2 Digital Audio Module available

With 200 Watts per channel, 14 inputs and a high-performance AM/FM tuner, the MAC7200 Receiver is a music lover’s dream. We’ve been making tuners since the 1950s and they are one of the hallmarks of McIntosh, with the groundbreaking MR78 FM Tuner from 1972 considered an all-time classic in the audio industry. The built-in AM/FM tuner in the MAC7200 comes from that same illustrious line of McIntosh tuners and will pick up your favorite radio stations with unparalleled clarity and a realism that is free from noise and distortion.

"What really makes the MAC7200 standout is the magic it brings to every recording you own." - Tone Audio

The MAC7200's advanced signal quality monitor can display the multipath and noise levels of the incoming RF signal to help fine tune antenna placement for optimal reception. Dedicated PRESET and TUNING knobs enable easy radio operation. The FM tuner includes Radio Data System (RDS) support, allowing it to display optional information sent by radio stations such as the station’s name and call letters as well as the name of the artist and song being played. It features 20 presets for each radio band as well as a remote AM antenna.

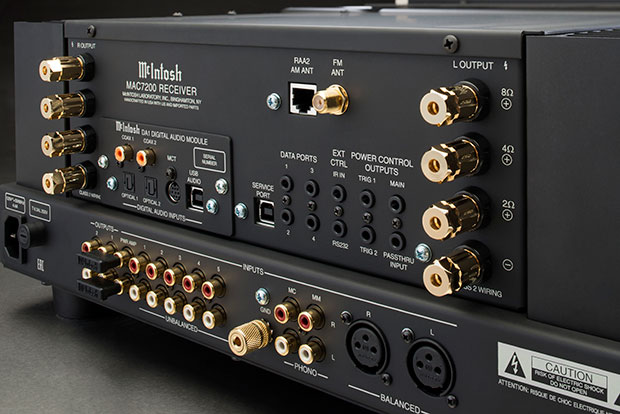

The 14 inputs are comprised of both analog and digital input types. For analog, there is 1 balanced and 5 unbalanced inputs plus 1 Moving Coil and 1 Moving Magnet input to connect turntables. For digital, there are 2 coaxial and 2 optical inputs, 1 USB and 1 proprietary MCT input (for use with our MCT500 SACD/CD Transport). All inputs can be given custom names for user-friendly system control and configuration. The digital inputs are contained in our DA1 Digital Audio Module; the DA1 can be replaced by future modules to easily keep the MAC7200 up to date with the latest digital audio technologies. (NOW AVAILABLE: Optional dealer installed upgrade to the DA2 Digital Audio Module.)

At the heart of the DA1 is a powerful 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. PCM signals up to 32-bit/384kHz can be played via the USB input, allowing for playback of high resolution audio up to DSD256 and DXD 384kHz levels. The coax and optical inputs support up to 24-bit/192kHz files.

"A pure music machine and it was built to deliver it, period." - TED Magazine

Our striking Monogrammed Heatsinks™ are included and they not only make a visual statement, but they are also very efficient at dissipating heat – which is why they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so the MAC7200 is ready to go from the moment you turn it on. Other McIntosh technologies found in the MAC7200 include our Autoformer™ to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard®, Sentry Monitor™, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts.

The MAC7200 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for a superior customer experience.

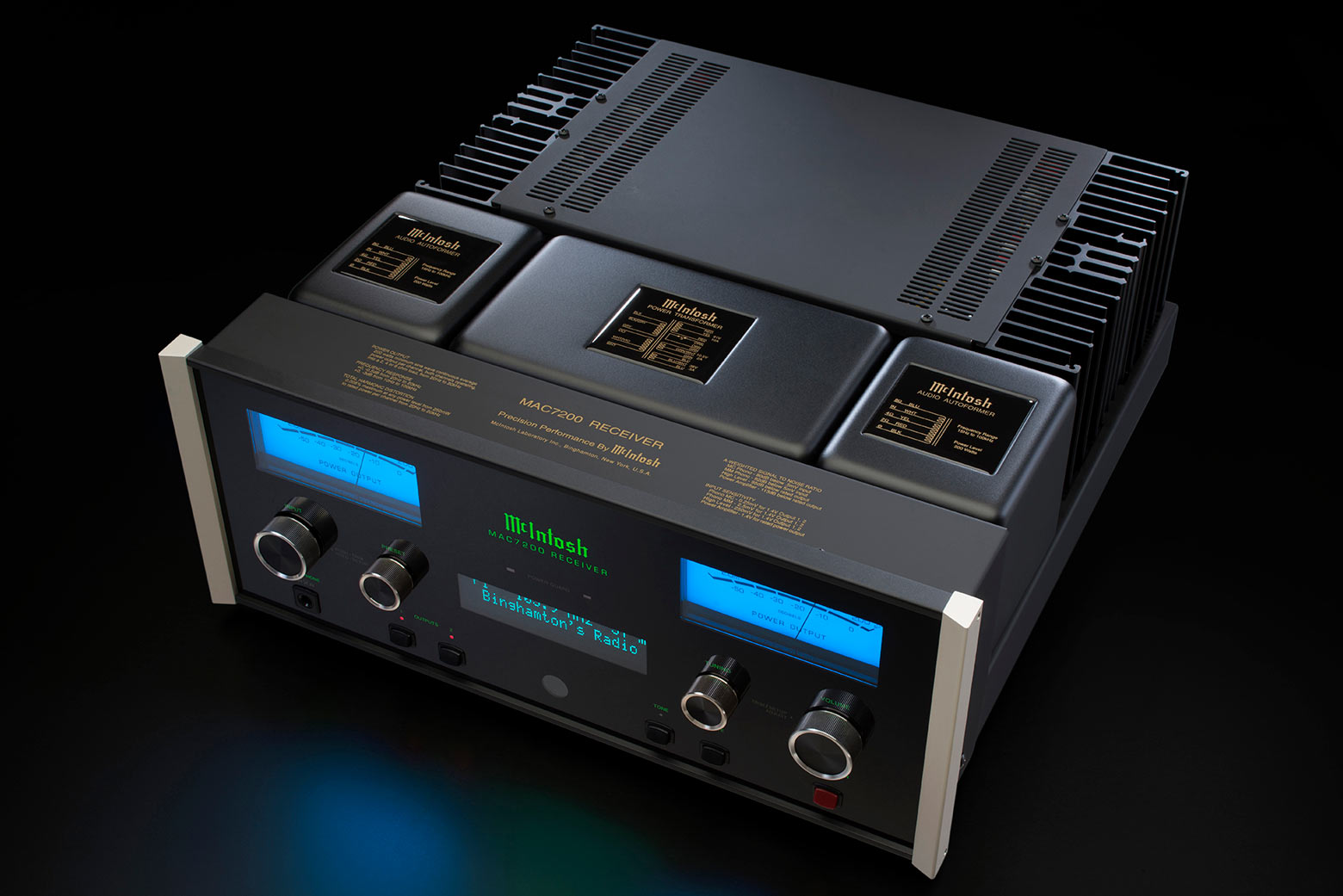

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo.

Electronic Specifications

  • Power Output per Channel
    200 Watts
  • Number of Channels
    2
  • Speaker Impedance
    2, 4, or 8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.005%
  • Dynamic Headroom
    2dB
  • Frequency Response +0,-0.5dB
    20Hz to 20kHz
  • Frequency Response, +0, -3dB
    10Hz to 100kHz
  • Sensitivity Phono (Moving Coil)
    0.25mV
  • Sensitivity Phono (Moving Magnet)
    2.5mV
  • Sensitivity High Level (Balanced / Unbalanced)
    0.5V/0.25V
  • Sensitivity (Power Amp input)
    1.4V
  • Signal To Noise Ratio (Moving Coil)
    80dB
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Signal To Noise Ratio (High Level)
    95dB
  • Signal To Noise Ratio (Power Amp input)
    113dB
  • Input Impedance (Balanced / Unbalanced)
    20K/20K
  • Damping Factor
    >40
  • Maximum Output (Balanced / Unbalanced)
    8V Unbalanced

Connectivity

  • Balanced Input
    1
  • Unbalanced Input
    5
  • Phono Input Moving Coil
    1 (adjustable loading)
  • Phono Input Moving Magnet
    1 (fixed loading)
  • Upgradeable Digital Audio Module
    Yes: DA1
  • Digital Coaxial Input
    2
  • Digital Optical Input
    2
  • Digital MCT (DIN) Input
    1
  • Digital USB Input
    1
  • Balanced Variable Output
    0
  • Unbalanced Fixed Output
    0
  • Unbalanced Variable Output
    2
  • Headphone Output
    1/4" High Drive with Headphone Crossfeed Director (HXD®)
  • AM/FM Tuner option
    Included
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Standard
  • Speaker Binding Post Type
    Standard
  • Service Port
    1

Digital Audio Specifications

  • Digital-to-Analog Converter (DAC) Type
    8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
  • Digital Coaxial Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital Optical Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital MCT (DIN) Input Sample Rate
    16-bit/44.1kHz (CD)
    DSD64 (SACD)
  • Digital USB Input Sample Rate
    32-bit/44.1kHz to 384kHz (PCM)
    DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

FM General Specifications

  • FM Tuning Range
    87.9MHz - 107.9MHz (USA)
    87.5MHz - 108.0MHz (Europe)
    76MHz - 90MHz (Japan)
  • FM Channel Spacing
    200kHz (USA)
    50kHz (Europe50)
    100kHz (Europe100, Japan)
  • FM Antenna Input
    75 ohms, Type “F” Coax connector

FM Analog Specifications

  • Useable Sensitivity
    2.2uV (18.1dBf)
  • 50dB Quieting Sensitivity
    1.5uV (14.8dBf)
  • Signal To Noise Ratio
    Mono: 70dB
    Stereo: 68dB
  • Frequency Response
    ±1dB 20Hz to 15,000Hz
  • Total Harmonic Distortion
    Mono: 0.4%
    Stereo: 0.8%
  • Channel Selectivity
    60dB Adjacent Channel
    66dB Alternate Channel
  • Stereo Separation
    38dB

AM General Specifications

  • AM Tuning Range
    530kHz - 1720kHz (USA)
    522kHz - 1602kHz (Europe)
    522kHz - 1611kHz (Japan)
  • AM Channel Spacing
    10kHz (USA)
    9kHz (Europe, Japan)
  • AM Antenna Input
    Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)

AM Analog Specifications

  • Selectivity
    45dB Adjacent Channel
  • Signal To Noise Ratio
    50dB
  • Frequency Response
    0dB, -6dB 50Hz to 3,000Hz
  • Total Harmonic Distortion
    0.5%
  • Sensitivity
    350uV/m

Control

  • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main, 2 Trigger
  • Rear Panel Data Port
    4
  • Rear Panel IR Sensor Input
    Yes
  • Input Level Match
    Yes

General Specifications

  • Vacuum Tube or Solid State
    Solid State
  • Output Type
    Autoformer™
  • Output Meters
    Yes
  • Dual Layer Chassis
    Yes
  • Chassis Finish
    Black painted steel
  • McIntosh Monogrammed Heatsinks™
    Yes
  • Power Requirement
    120V 50/60Hz, 4.4 amps
  • Standby Power Requirement
    <0.25 Watts

Weights & Dimensions

  • Dimensions (W x H x D)
    17-1/2" (44.45cm) x 7-5/8" (19.37cm) x 22" (55.88cm)
  • Weight
    75 lbs (34.1 kg)
  • Shipping Weight
    93 lbs (42.3 kg)
