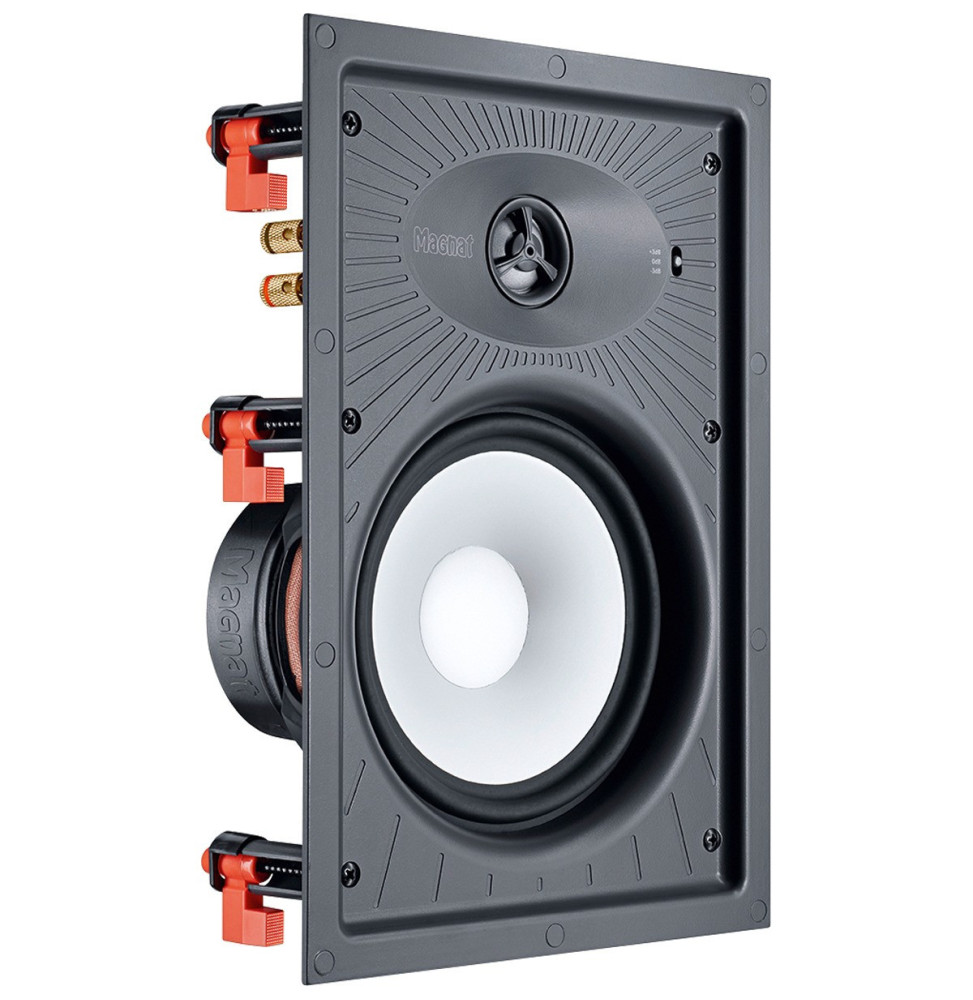

Magnat Signature IWT 162 In-Wall Speaker (Each)

IWT 162 - Designed & Engineered in Germany

Overview

The compact version for wall installation is the IWT 162, which features one woofer and a tweeter, yet still ensures a full-blooded sound. The 16 cm woofer with its aluminum/ceramic cone and a tweeter with coated fabric dome cater for the full frequency range down to 32 Hz. The treble level can be adjusted in three stages here as well, thereby enabling a wide range of installation positions. Measuring 320 x 220 mm with a mounting depth of 102 mm, the Signature IWT 162 doesn´t pose any problems during installation. It doesn´t require a special housing and is perfectly accommodated in any drywall and from a volume of 20 liters. The IWT 162 is suitable for use as a front speaker, as a fully-fledged front channel in a home cinema setup, as well as a luxurious rear channel speaker.

Features

• High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
• High load capacity with compact dimensions
• Uncomplicated installation thanks to a sophisticated mounting system
• Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
• Treble level can be adjusted in 3 stages
• Designed for installation in drywalls (no housing required) or in closed volumes (30 liters or more)
• Durable long-throw rubber surrounds for linear operation of the woofer-midrange drivers to handle even large cone excursions
• Elaborate phase-optimized crossover with 3 settings for the tweeter level
• Gold-plated push terminals for cables with cross-sections of up to 6 mm²
• Klippel®-optimized speaker drivers for high efficiency and maximum level
• 6fold clamping mechanism for very easy and robust installation in surfaces of up to 30 mm thickness
• Removable magnetic metal grill with fine perforations and very slim design for an elegant appearance
• Woofer-midranges with magnet protection cover to prevent any damage and undesirable background noise
• Woofer-midrange with powerful drive system and 3-layer aluminium/ceramic sandwich cone for deep bass reproduction and highest sound precision
• Large high-end fabric dome with protective diffusor for excellent dynamics and harmonic coupling to the woofer-midrange

Specifications

• FREQUENCY RESPONSE 32 - 28000 Hz
• PRINCIPLE 2-way in-wall/in-ceiling loudspeaker
• EQUIPMENT 1 x 6.5“ woofer-midrange 1 x 1“ dome tweeter
• POWER HANDLING (RMS/MAX.) 110 / 180 watts
• IMPEDANCE 4 Ohms
• CROSSOVER FREQUENCIES 3.100 Hz
• RECOMMENDED AMPLIFIER OUTPUT 20 - 180 Watts
• SENSITIVITY (2.8V/1M) 91 dB
• MOUNTING DEPTH 102 mm
• WEIGHT 2.15 kg
• OUTER DIMENSIONS (WXH) 220 x 320 mm
• CUTTING OUT (WXH) 186 x 286 mm

Documentation

Specification
Owner's manual

New Zealand Magnat Audio Official Product. Come with Magnat Audio Manufactures Warranty.
