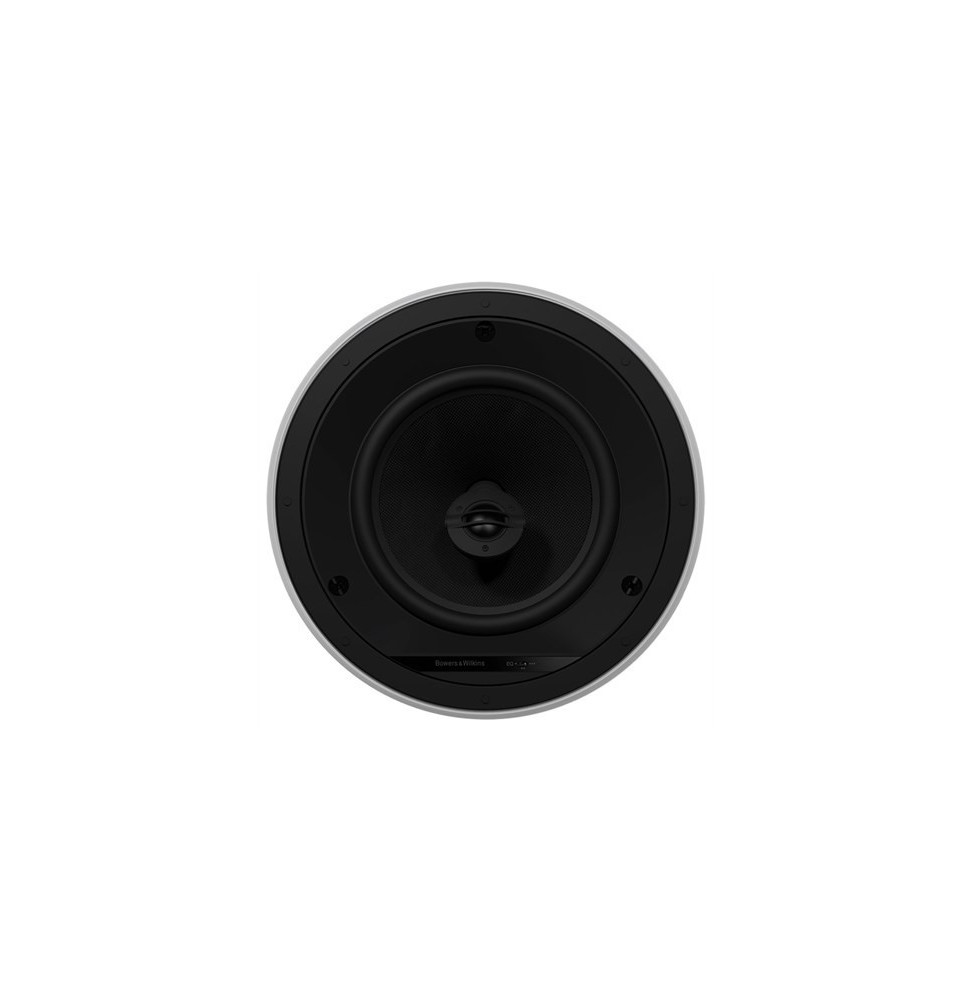

B&W CCM684 In-Ceiling Speaker

Print

ccm684

New

The entry point among the CI 600 range of 8in in-ceiling speakers, the two-way CCM684 features a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter.

More details

$ 999.00

In-Stock At Supplier

The entry point among the CI 600 range of 8in in-ceiling speakers, the two-way CCM684 features a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. As with the other 8in speakers in the range, the tweeter housing pivots for adjustable off-axis treble response. It also comes with an EQ switch, as well as QuickDogs™ and a plug-and-play functionality for easy installation.

Description2-way in-ceiling system
Drive Units1x ø25mm (1in) soft dome tweeter

1x ø200mm (8in) black glassfibre cone bass/midrange
Frequency Range (-6dB)35Hz – 35kHz
Recommended Amp Power25 – 130w
Sensitivity SPL (2.83V, 1m)88dB
Impedance Nominal (min)8Ω (4.5Ω)
Frame diameter290mm (11.4in)
Cut-out diameter250mm (9.8in)
Depth behind surface133mm (5.2in)
Protrusion4mm (0.2in)
Pre-mount KitC8
Back Box6C

NB: Price listed is for "each" speaker.  Custom Install range may require back order from the distributor. Please contact store for availability.
