ccm632
New

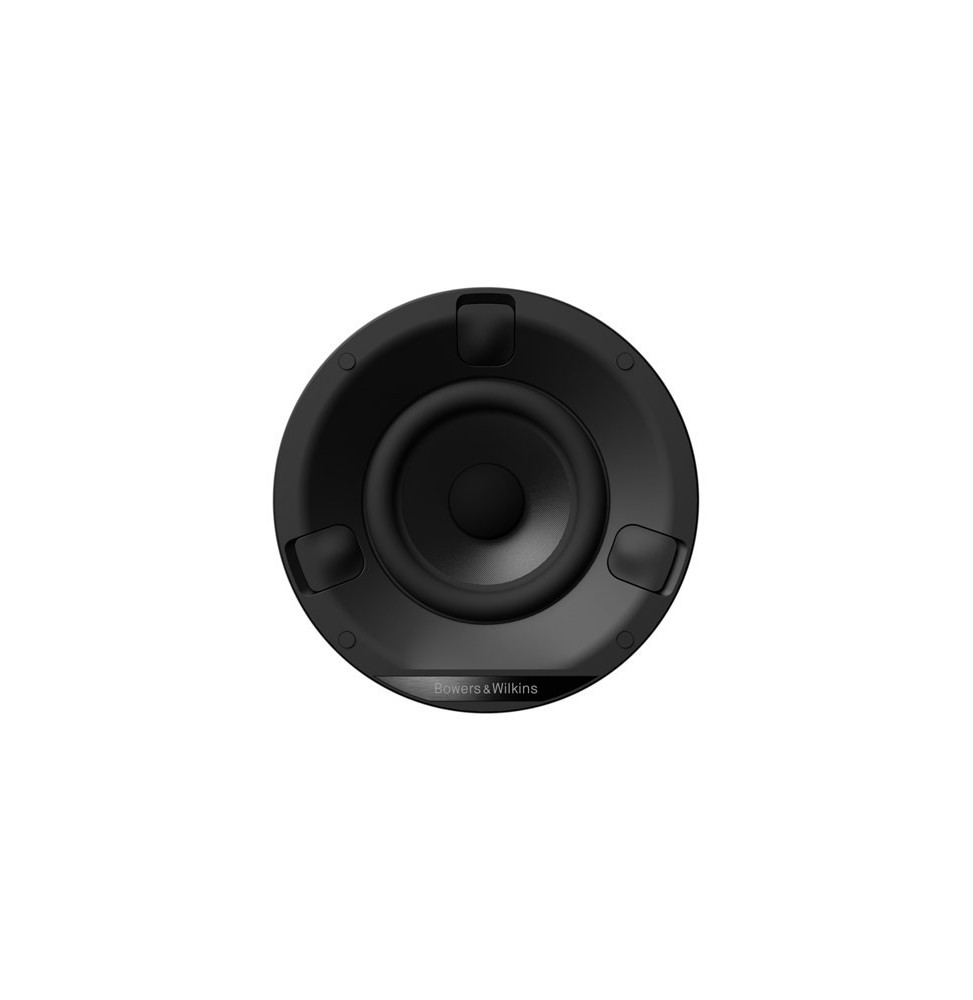

CCM632 is an in-ceiling speaker designed to deliver a full range of sound at high quality in a very small space.
0 Item Items
Availability date:
Getting small install speakers right is hard. They’re great for tight squeezes or satellite placement. But usually either the bass is too mild or the mid-range suffers thanks to the tweeter placed in front of it.
CCM632 squeezes a full-range driver with beautifully well-balanced sound into a 150mm diameter install space. The space taken may be small, the sound is anything but.
CCM632 features an integral enclosure to avoid acoustic bleed. And they are simple to instal in a wide variety of places, and will work in almost any panel thickness.
150mm Diameter frame installed
100mm depth behind surface
| Description | Single driver in-ceiling system |
| Drive Units | 1x Ø75mm (3 in) paper cone full-range |
| Frequency range (-6dB) | 100Hz – 17kHz |
| Frequency response (+/-3dB) | 112Hz - 16kHz |
| Recommended Amplifier Power | 10W – 60W |
| Sensitivity | 84dB (2.83V, 1m) |
| Nominal Impedance | 8Ω (5Ω minimum) |
| Frame | Ø147mm (5.8 in) |
| Cut-out | Ø120mm (4¾ in) |
| Depth behind surface | 100mm (4 in) |
| Protrusion | 5.5mm (0.22 in) |
| Pre-mount Kit | PMK C3 |
| Back Box | Integral |
| Grille Options | Square and round grilles included |
NB: Price listed is for "each" speaker. Custom Install range may require back order from the distributor. Please contact store for availability.
