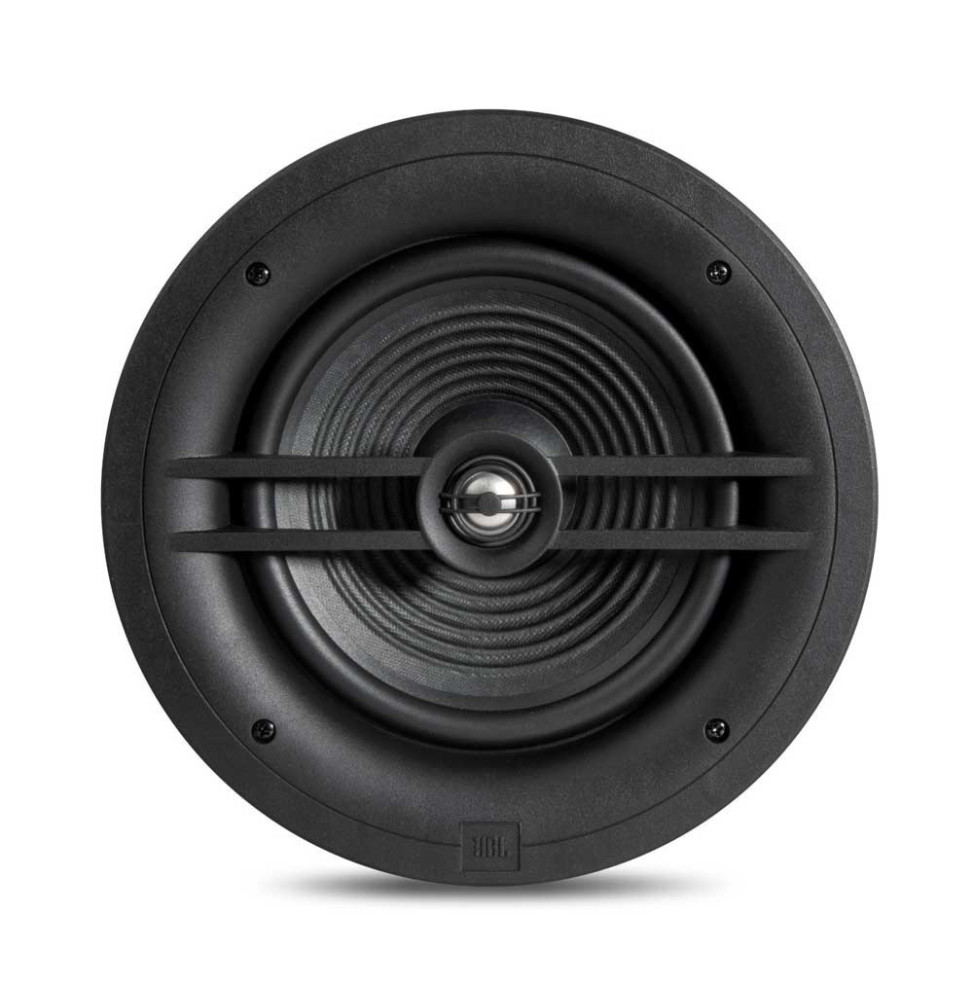

JBL Stage 260C 6.5″ In-Ceiling Speaker (Each)

JBL Stage 260C 6.5″ In-Ceiling Speaker

The JBL Stage 260C 6.5″ In-Ceiling Speaker was designed to deliver iconic JBL sound, so that it blends into the environment and the music stands out.

All models are crafted to be visually discrete with zero bezel grilles and easy installation allowing these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) horns have been incorporated into the design to ensure that the sound is clear and accurate. A range of eight models are available in various configurations for In-Wall and In-Ceiling installation.

From an acoustic point of view, it uses a 2-way configuration and 2 loudspeakers mounted on a highly rigid circular front panel specially designed to maximize their integration.The Stage 260C includes 1 aluminum dome tweeter 25 mm in diameter and 1 “midwoofer” with a 165 mm polycellulose cone, highlighting the first waveguide that it incorporates in order to maximize sound dispersion and minimize the distortion. Finally,

Features

• Rigid Baffle design with acoustic smoothing for improved transducer integration
• Aluminum Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
• High-Definition Imaging (HDI™) horns with optimized geometry for smooth dispersion and low distortion
• Harman target curve acoustic performance for smooth accurate sound over a large listening area
• Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
• XL-2 installation system compatible with up to 2” (50mm) thick wall/ceiling material

Specifications

1″ (25mm) Aluminum dome Tweeter with High-Definition Imaging (HDI™) horn
6.5″ (165mm) Polycellulose cone woofer
Frequency Response 50Hz-25kHz (-6dB on-axis)
Nickel-plated spring-loaded connectors
Nominal Impedance 8 ohm
Sensitivity 87 dB
Recommended amplifier – 20-100W RMS
Grille Dia: 9.4in (239mm)
Cutout Dia: 8in (203mm)
