IC623 - Designed & Engineered in Sweden
Overview

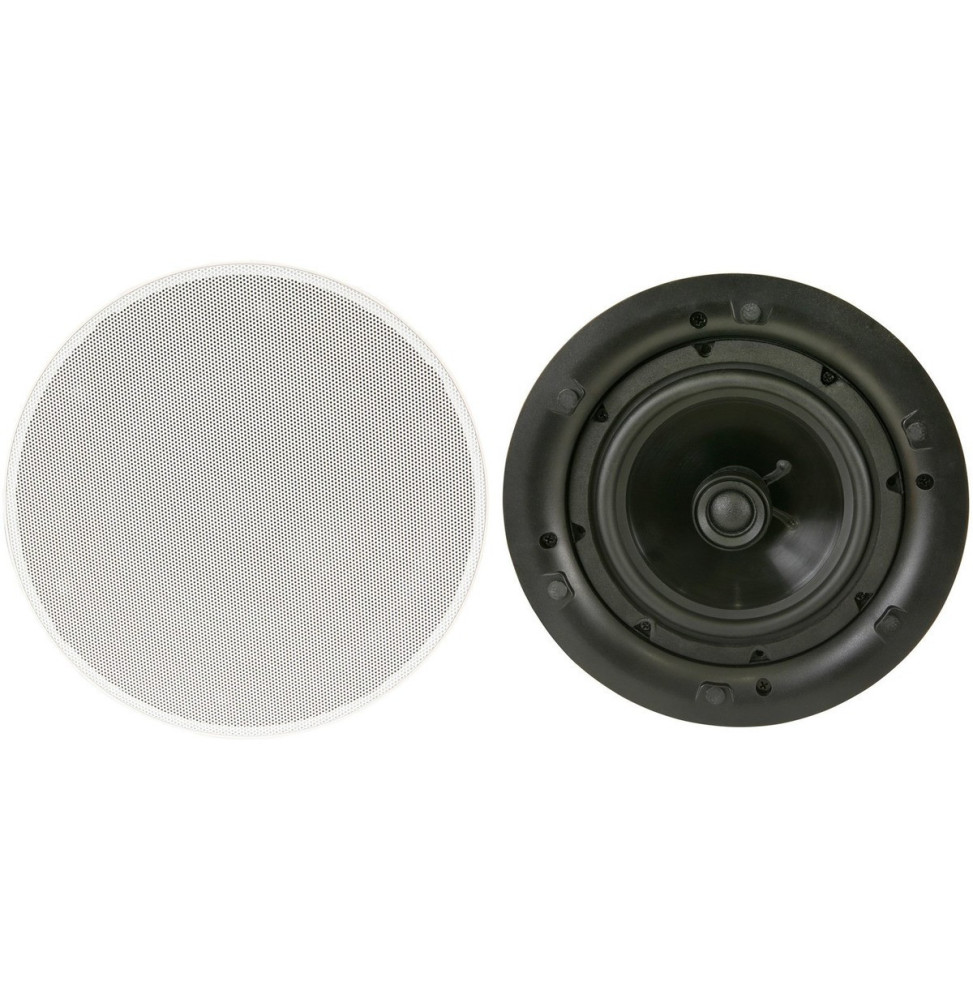

DLS IC 623 slim installation depth of 65 mm. For ceiling or wall mount in round shape. This model has a magnetic grille frame.
The speakers are made with only high class components making them suitable for use in most environments. Use as extra speakers in your kitchen or bath room. They can also be used as surround speakers in home cinema. If you have a surround amplifier with multi room function these speakers are very well suited for this application.
IC 623 has a high class silk dome tweeter with neodymium magnet system. The passive filter splits the signal between bass & tweeter.
Comes in pairs.
Specifications
- Description / type 2-way coaxial for ceiling mount
- Impedance 4 ohm
- Sensitivity 90 dB (1W/1m)
- Frequency range 50 - 20 000 Hz
- Recommended amplifier 20 - 100 Watt
- Tweeter 20 mm soft dome
- Woofer size 6,5" (165 mm)
- Cone material Polypropylene with rubber surround
- Outer dimensions 234 mm (9,21")
- Cutout dimensions 205 mm / 8,07"
- Mounting depth 65 mm / 2,56"
- Baffle thickness 10-33 mm
- Off-axis angle +- 45 degrees in distributed audio systems
- Weight 1,5 kg / 3,3 lbs
- Finish / colour White, RAL 9003
Documentation
SpecificationOwner's manual
