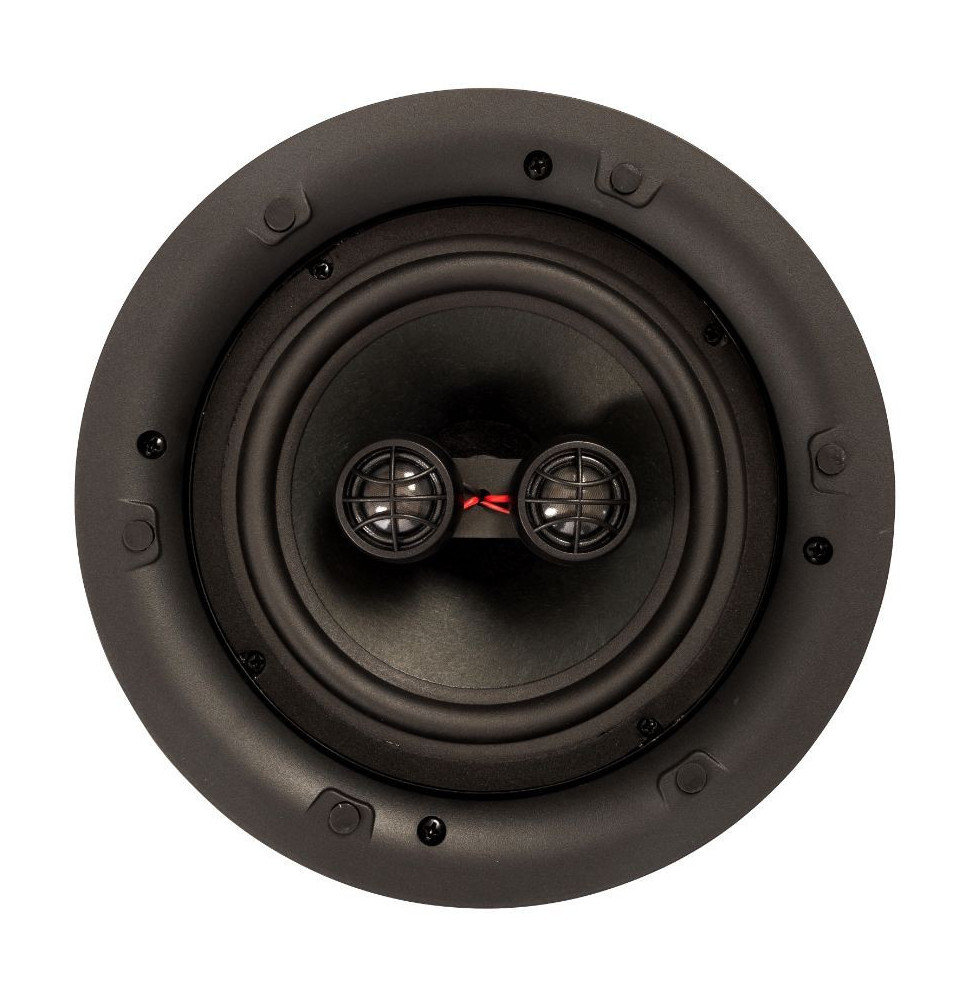

DLS Audio IC646 In-Ceiling Speakers

Print

dlsic646

New

DLS IC646 for in-ceiling mount. Two speakers in one!

Connect both stereo channels to a single speaker. The bass driver have dual 4 ohm voice coils and two separate angled 20 mm tweeters for best stereo image.

More details

$ 649.00

In-Stock At Supplier

IC646 - Designed & Engineered in Sweden

Overview

DLS IC646 for in-ceiling mount. Two speakers in one!

Connect both stereo channels to a single speaker. The bass driver have dual 4 ohm voice coils and two separate angled 20 mm tweeters for best stereo image.

A speaker in the classical round style. Only high class components are used and the speakerts can be used in most environments. This speaker has a small edge and the grille is attached to the frame with small neodymium magnets..

Perfect as extra speaker in small areas like kitchen, bath rooms or small rooms where two separate speaker are difficult to install.

Selectable tweeter level in two steps.

Sold as single units.



Specifications

  • Description / type 16,5 cm / 6,5" single stereo coaxial speaker
  • Impedance 2 x 4 ohm dual voice coil
  • Sensitivity 91 dB (1W/1m)
  • Frequency range 50 - 20 000 Hz
  • Recommended amplifier 20-120 Watt
  • Tweeter 2 x 20 mm / 0,8" silk dome tweeter
  • Woofer size 16,5 cm (6,5")
  • Cone material Paper with rubber surround
  • Outer dimensions 234 mm / 9,21"
  • Cutout dimensions 205 mm / 8,07"
  • Mounting depth 103 mm / 4,06"
  • Baffle thickness 10-33 mm
  • Off-axis angle +- 45 degrees in distributed audio systems
  • Finish / colour White with magnet grille.
  • Weight 1,95 kg / 4,3 lbs

Documentation

Specification
Owner's manual

New Zealand DLS Official Product. Come with DLS Manufactures Warranty.
