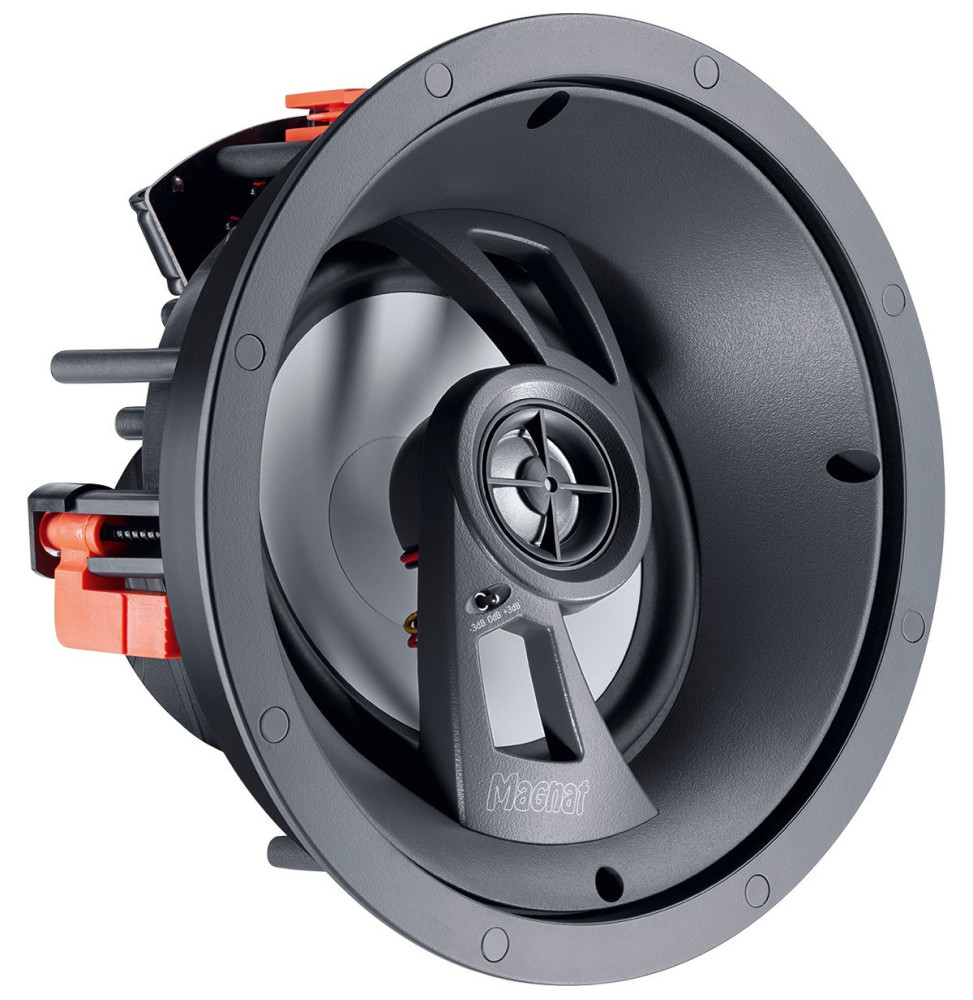

Magnat Signature ICT 62 In-Ceiling Speakers

ICT 62 - Designed & Engineered in Germany

Overview

The round ICT 62 in-ceiling speaker completes the product range. It combines a 160 mm woofer with a 25 mm tweeter dome, and its angled design allows perfect alignment to the listening position, meaning that even if a mounting position is only available in the ceiling, an appealing, spatial representation is still produced. In addition, the ICT 62 is also perfectly suited for use with Dolby Atmos configurations in a direct sound mode. Thanks to the acoustic coordination that is compatible with the rest of the Signature series, all imaginable setups and configurations can be realized. With an outer diameter of 238 mm and an installation depth of 130 mm, it is extremely compact despite its high performance.

Features

• High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
• High load capacity with compact dimensions
• Uncomplicated installation thanks to a sophisticated mounting system
• Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
• Angled alignment to the listening position
• Woofer-midrange with powerful drive system and 3-layer aluminium/ceramic sandwich cone for deep bass reproduction and highest sound precision
• Durable long-throw rubber surrounds for linear operation of the woofer-midrange drivers to handle even large cone excursions
• Woofer-midranges with magnet protection cover to prevent any damage and undesirable background noise
• Elaborate phase-optimized crossover with 3 settings for the tweeter level
• Removable magnetic metal grill with fine perforations and very slim design for an elegant appearance
• Klippel®-optimized speaker drivers for high efficiency and maximum level
• Large high-end fabric dome with protective diffusor for excellent dynamics and harmonic coupling to the woofer-midrange
• Gold-plated push terminals for cables with cross-sections of up to 6 mm²
• Designed for installation in drywalls (no housing required) or in closed volumes (30 liters or more)
• Angled speaker unit (15°) allows perfect alignment to the listening area
• Tweeter can be pivoted by up to +/-15°
• 4fold clamping mechanism for very easy and robust installation in surfaces of up to 30 mm thicknes

Specifications

• FREQUENCY RESPONSE 32 - 28000 Hz
• PRINCIPLE 2-way in-wall/in-ceiling loudspeaker
• EQUIPMENT 25 mm dome tweeter 160 mm midrange-woofer
• POWER HANDLING (RMS/MAX.) 110 / 180 watts
• IMPEDANCE 4 Ohms
• CROSSOVER FREQUENCIES 3.100 Hz
• RECOMMENDED AMPLIFIER OUTPUT 20 - 180 Watts
• SENSITIVITY (2.8V/1M) 91 dB
• OUTER DIMENSIONS Ø 238 mm
• CUTTING OUT Ø 206 mm
• MOUNTING DEPTH 130 mm
• WEIGHT 1,82 kg

Documentation

Specification
Owner's manual

New Zealand Magnat Audio Official Product. Come with Magnat Audio Manufactures Warranty.
