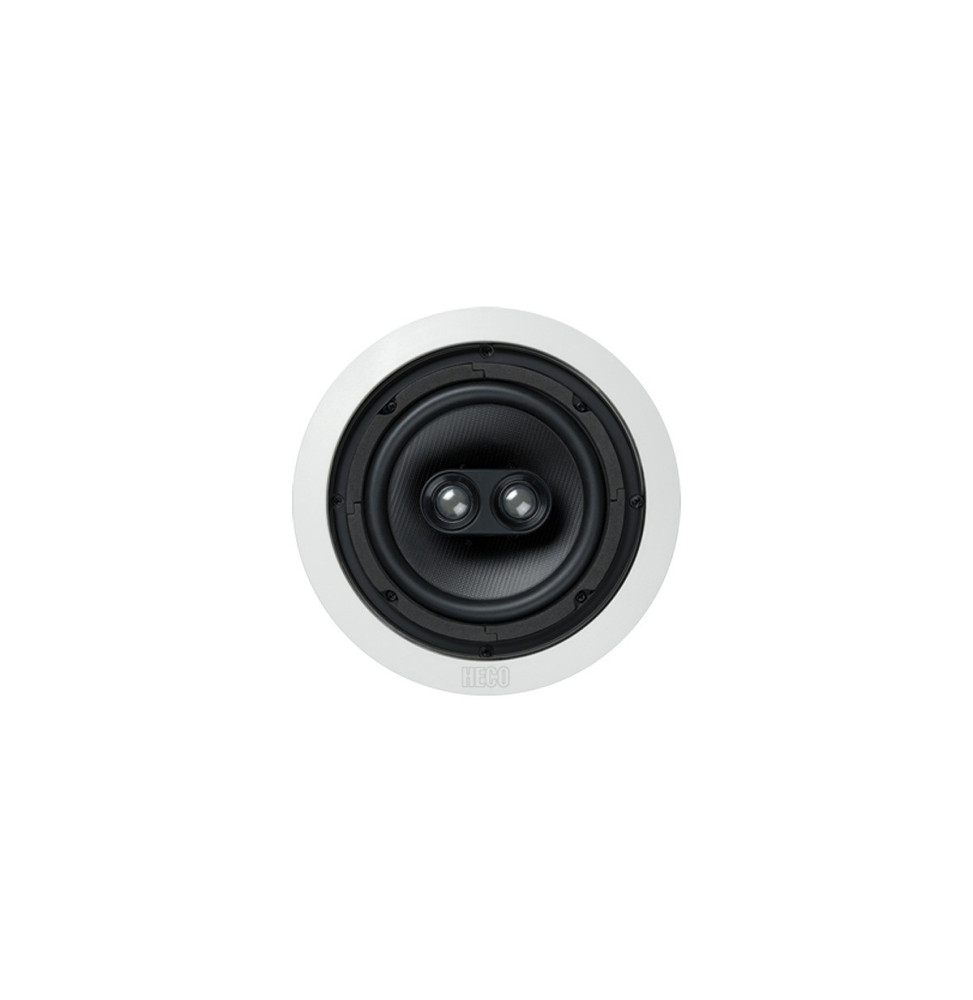

Heco INC 262 In-Ceiling Speaker

Overview

HECO´s INC 262 is the model for special applications in the Install Basic series. The speaker is closely related to the INC 62, however, unlike its sister model it features a dual voice coil for the bass-midrange and two 19 mm fabric dome tweeters. This special configuration means the speaker can either be operated with a mono or stereo signal. The desired operating mode is set, just like the tweeter level, via a switch on the crossover. Its coaxial driver configuration makes it particularly suitable for ceiling installation. The grille, which can be removed for installation purposes, provides a seamless transition to the discreet mounting frame.

Features

• Built-in loudspeakers
• Solid protection grille
• Special clamping mechanism for easy installation
• Moisture-proof speaker system, suitable for use in humid rooms (bathroom)
• In-wall/in-ceiling loudspeaker
• 25 mm tweeter
• 160 mm woofer
• Coated soft-dome fabric tweeter
• Crossover with high-quality components and 3 settings for the tweeter level
• Gold-plated push terminal
• Mounting dimensions (Ø) 193 mm
• Mounting depth 75 mm

Specifications

• Built-in loudspeakers
• 25 mm tweeter
• 160 mm woofer
• Power Handling (RMS/Max) 80 / 150 watts
• Sensitivity (2.8V/1m) 90 dB
• Impedance 2 x 4 Ohm
• Frequency response 36 – 28.000 Hz
• Crossover frequencies 3.800 Hz
• Recommended Amplifier Output 30 - 160 watts
• Outer Dimensions Ø 228 mm
• Mounting dimensions (Ø) 193 mm
• Mounting depth 75 mm

New Zealand HECO Official Product. Come with HECO Manufactures Warranty.
