Shanling M7 Portable Audio Player DAP

Shanling M7 Portable Audio Player DAP

Print

sm7

New

Portable MP3/MP4 Player,Hi-Res Bluetooth Music Player,2.4G/5G WiFi|ES9038Pro DAC|5.0inch HD Screen|6+128GB|Android10 Snapdragon 665|16X MQA|3.5&4.4mm|900mW@32Ω Output

More details

$ 2,499.00

In-Stock At Supplier

  • SHANLING M7 Music Player is equipped with 6G RAM and 128G ROM, which is a revolutionary breakthrough in the whole series. M7 is equipped with an open Android 10 system,Bluetooth5.0, and also supports DLNA, Airplay, NAS functions, bringing you a real smartphone experience.
  • 【Excellent Audiovisual Experience】-- SHANLING M7 Coming with a beautiful 5-inch LCD panel from Sharp, offering 1920*1080 resolution at 441PPI, stunning colors and great viewing anglesFitted into the “Floating Screen”design of the front panel, some system option buttons are designed with metal-like UI, creating the whole main chassis from asingle piece of aircraft-grade aluminium, with a complex wave pattern on the sides, all in elegant titanium grey finish,providing for better user experience.
  • 【Dual WiFi, High-Speed Transmission】-- SHANLING M7 MP4/MP4 player adopts Qualcomm WCN 3980 WiFi module, which not only supports 2.4G/5G dual-band WiFi, but also supports MIMO technology, making data transmission more stable.
  • 【Super Battery Life,Support Fast Charge】-- SHANLING M7 is equipped with a large 7000mAh battery, which can support 3.5mm single-ended output for 10hours, 4.4mm balanced output for 8.5 hours, and Bluetooth transmission for 85 hours. In addition, Shanling M6 Ultra also supports QC3.0 18W fast charging, allowing you to quickly replenish power.
  • 【Flagship ESS Performance】-- SHANLING M7 Digital Audio Player Equipped with ES9038PRO,Using high-precision originals, eight-channel full output, using the same current-type output scheme as CD3.2 (21), defending the beautiful sound quality of neutral balance and natural transparency.
  • 【New OP+BUF Audio Architecture】-- Using SHANLING engineer's "full-band phase-consistent low-pass filtering technology", using OP+BUF audio architecture, with a newly designed four-way fully balanced output circuit, the M7's distortion, driving force and control are just right.
  • 【High-Resolution Headphone Amplifier】-- The SHANLING M7 Music player Supports 16x MQA decoding and USB Audio output MQA signal.Can support up to768kHz/32bit, DSD512.Output power single-ended output 3.5mm 400mW@32Ω, balanced output 900mW@32Ω.
  • 【Legendary Octa Core Snapdragon 665】-- M7 equipped with Qualcomm Snapdragon 665 octa-core processor. The powerful Snapdragon 665 adopts advanced 11nm process, the CPU adopts Kryo high-performance architecture, and Adreno 610 is a powerful booster for visual effects, with lower power consumption and lower heat generation, guaranteeing Fast and smooth operation.
Streamlined Wave Body Design

The M7 fifth-generation appearance design is inspired by the 25th anniversary Hi-End suit of Shanling. It uses aviation-grade magnesium-aluminum alloy regardless of cost, and adopts the Unibody integrated CNC milling process to cut the whole machine. The integrated body design is natural and does not leave a trace. The gap; the side edge curve is like a streamer, telling the storage of music feelings and long-cherished wishes; the supersonic titanium color refracts the elegant figure.

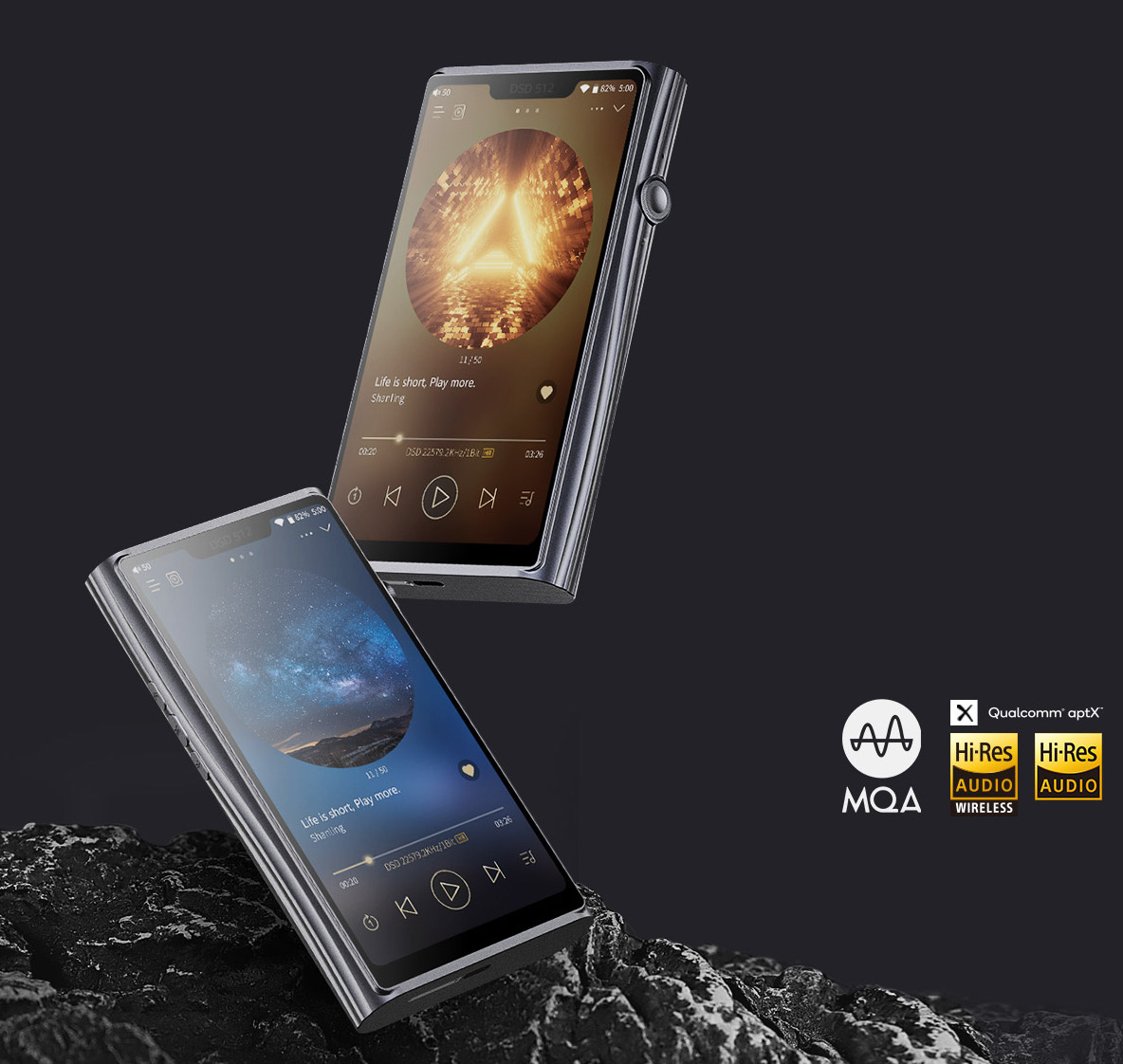

Floating Screen DesignOutstanding Vision, Shining on the Screen

The M7 is equipped with a 1920*1080 5-inch Sharp high-definition LCD screen with a PPI of up to 441. The floating screen makes the front more visually outstanding; some system option buttons are designed with metal-like keys to create a visual experience that is intertwined with reality and beauty.

Flagship ES9038Pro DAC

  • M7 selects the industry-leading ES9038Pro chip, uses high-precision components for tuning, eight-channel full blood output, uses 34-year-precipitated tuning skills, and adopts the same current-type output scheme as CD3.2 (21) to defend the ashes. The pure texture that enthusiasts dream of, interprets the atmospheric sound of neutral balance, natural transparency, and a sense of line.

New OP+BUF Audio Architecture

  • M7 adopts the "low-pass filter technology with consistent phase in all frequency bands" developed by Shanling acoustic engineers, uses the classic OP+BUF audio architecture, and matches the newly designed 4-way fully balanced output circuit, so that the distortion, driving force and control of M7 can be improved. The power is just right.

Legendary octa-core Snapdragon 665

  • The M7 is equipped with Qualcomm Snapdragon 665 true octa-core processor. The Snapdragon 665 adopts the advanced 11nm process, the CPU adopts the Kryo 260 high-performance architecture, and the Adreno 610 is a powerful booster for visual effects, with lower power consumption and lower heat, ensuring smooth and high-speed operation.
  • M7 is equipped with LPDDR4X 6G RAM and UFS2.1 128G ROM. Massive audio resources can be accommodated in the palm of your hand. While the player is in high-intensity operation, it can ensure stable and fast reading and writing, and the capacity is bursting, covering everything.

Dual Band WiFi and MIMO Technology, High-Speed Transmission

  • M7 adopts Qualcomm WCN3980 WiFi module, which not only supports 2.4G/5G dual-band WiFi, but also supports MIMO technology to build a highway with stable and safe data transmission

Fully Balanced 4-Channel Amplifier Circuit

  • SHANLING self-developed I/V conversion solution

The I/V conversion circuit adopts 2 ADA4896-2 chips. The performance, material and accuracy of each capacitor and resistor are repeatedly examined.

  • The MUSES8920 is a high quality audio J-FET input dual operational amplifier. Features such as low noise, low distortion and excellent speed.
  • High Precision Thin Film Resistors

The thin film resistor adopts advanced sputtering technology, the accuracy is as high as 0.01%, Stablize, can reduce the error of the channel output.

  • CPAF low-pass filtering technology

Through the independently developed CPAF (Constant Phase in All Frequency) low-pass filtering technology, the current newer and better electronic components are used to re-interpret the balanced beauty of music.

  • TI-OPA2211 dual-channel op amp

The LPF circuit adopts 2 OPA2211 chips, which have low distortion, high output driving capability and reduce crosstalk.

  • TI-BUF634A high-speed buffer

Effectively increase output current and provide capacitive load drive capability.

  • The 3rd generation FPGA technology + KDS low phase noise active crystal oscillator

With two KDS femtosecond low phase noise 45.1584MHz/49.152MHz active crystal oscillators from Japan, which can reduce jitter and provide more accurate clock signals, support 768 kHz/32 bit Hard solution with native DSD512.

  • Japan ELNA high quality silk film capacitor

The M7 amp circuit uses four 100 μF ELNA (SILMICII) capacitors to protect the sound.

Plenty of Power, 18W Fast Charge

  • 10 hours Single-Ended Output
  • 8.5 hours Balanced Output
  • 85 hours Bluetooth Transmission
  • The M7 is equipped with a large battery of 7000 mAh, which is full of energy. QC fast charge 3.0 makes it exciting to not drop the line under 18W fast charging, and HiFi is smooth enough.

Bluetooth 5.0 Full Format, Stable Transmission

  • Bluetooth transmitter support: LDAC / LHDC / aptX HD / aptX / SBC
  • Bluetooth receiving support: LDAC/SBC

Support MQA 16X

  • M7 has a powerful hardware configuration, which can support 16 times high-definition MQA files to expand full-channel digital signals from local, streaming media, USB Audio, etc., so that all sounds can be won in detail, and the slightest will be present.

3.5mm&4.4mm Output And Third Gear Gain

  • M7 has three gears (LOW, MED, HIGH) earplug gain optional .
  • Output power up to 3.5mm single-ended 400 mW@32Ω, 4.4mm balanced 900 mW@32Ω .
  • To a great extent, it can meet the needs of everyone using hard-to-drive headphones, and all kinds of tones can be easily controlled.

New Zealand Shanling Official Product. Come with Shanling Manufactures Warranty.
