Audio Specifications
- Number of Channels
- 2
- Fixed Output Level
- 2.0Vrms Unbalanced
4.0Vrms Balanced
- Variable Output Level
- N/A
- Output Impedance
- 600 ohms Unbalanced and Balanced
- Frequency Response
- 4Hz to 40kHz, +0.5, -2dB (SACD)
4Hz to 20kHz, ±0.5dB (CD)
- Signal To Noise Ratio
- Better than 108dB (A-weighted)
- Dynamic Range
- Better than 100dB
- Total Harmonic Distortion
- 0.003% @ 1000Hz (SACD)
0.002% @ 1000Hz (CD)
- Channel Separation
- Better than 98dB (1,000Hz)
- Headphone Output Impedance
- N/A
Digital Audio Specifications
- Digital-to-Analog Converter (DAC) Type
- 2-channel, 32-bit/192kHz PCM/DSD
- Coaxial Sample Rate
- N/A
- Optical Sample Rate
- N/A
- USB Sample Rate
- N/A
- Digital Coaxial Input
- N/A
- Digital Optical Input
- N/A
- Digital Output Sample Rate
- Up to 24-bit/192kHz
- Digital Optical Output
- -15dbm to -21dbm
- Digital USB Input Type
- N/A
- Digital Coaxial Output
- 0.5V p-p/75 ohms
- Digital XLR Output
- N/A
- Digital MCT (DIN) Output
- N/A
- Digital Output Jitter
- N/A
Connectivity
- Balanced Fixed Output
- 1
- Unbalanced Fixed Output
- 1
- Balanced Variable Output
- 0
- Unbalanced Variable Output
- 0
- Digital Coaxial Input
- 0
- Digital Optical Input
- 0
- Digital USB Input
- 0
- Digital USB Input Type
- N/A
- Digital Coaxial Output
- 1
- Digital Optical Output
- 1
- Digital XLR Output
- 0
- Digital MCT (DIN) Output
- 0
- Headphone Output
- 0
Control
- Rear Panel IR Sensor Input
- 1
- Rear Panel Data Input
- 1
- Power Control Input
- 1
- Power Control Output
- 1
General Specifications
- Disc Formats
- CD, SACD, MP3 and WMA
- Disc Capacity
- 1
- Laser Type
- Twin Beam
- Laser Beam Wavelength
- 650nm (SACD)
790nm (CD)
- Laser Power
- CLASS IIa/CLASS I
- Standby Power Requirement
- <0.5 watt
Weights & Dimensions
- Dimensions (W x H x D)

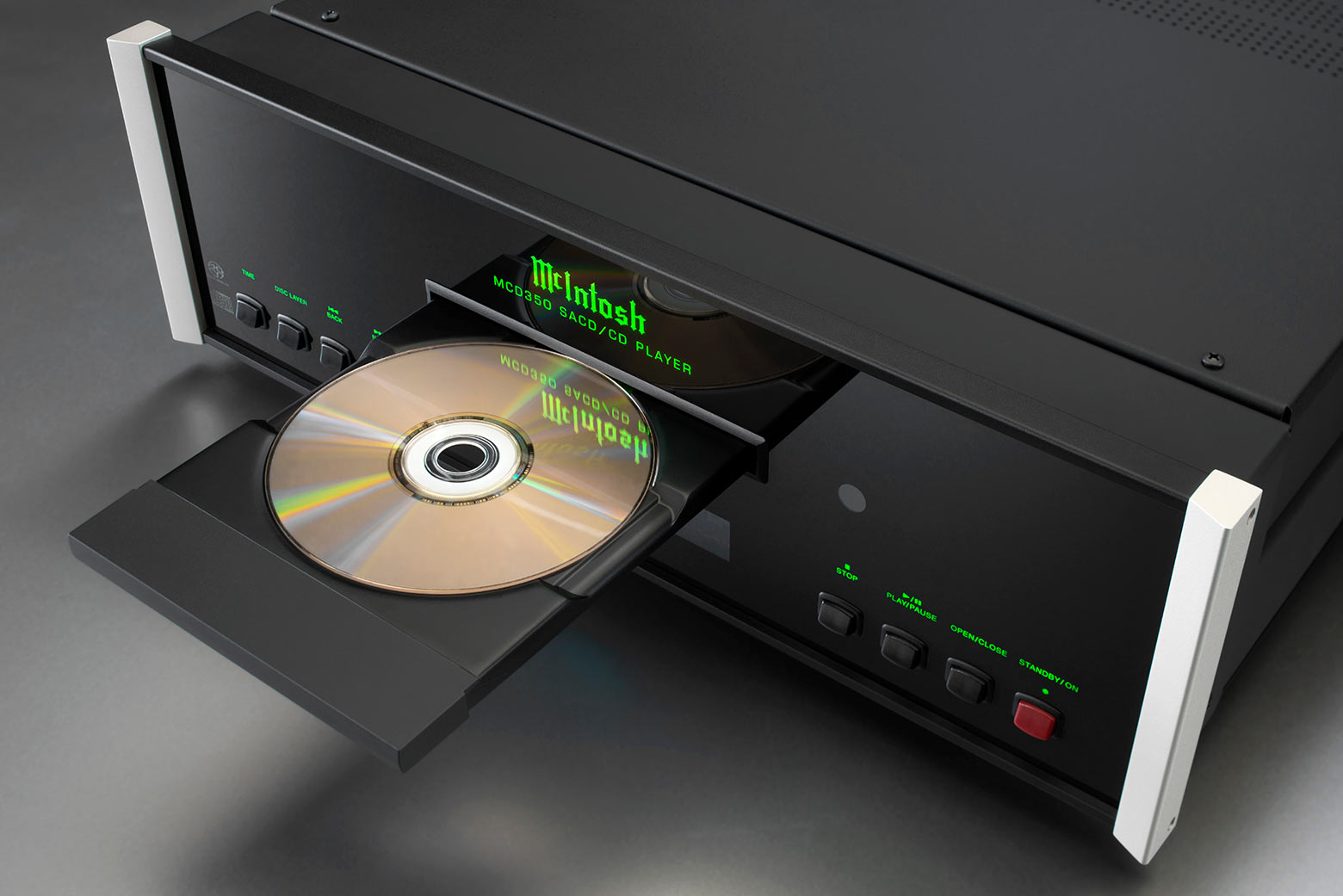

- 17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).
- Weight
- 28 lbs (12.7 kg)
- Shipping Weight
- 42.5 lbs (19.2 kg)
